STILL REACH
REACH • Stock No: 455255 £
Login to see price Model FM14
Year 2000
Euromast 3F938
Hours 9467
Capacity 1400 kg
Lift height 9360
Back to search results
![STILL REACH]()
![STILL REACH]()
![STILL REACH]()
![STILL REACH]()
![STILL REACH]()
Stock No: 450038 Enquire about this vehicle Enquire via

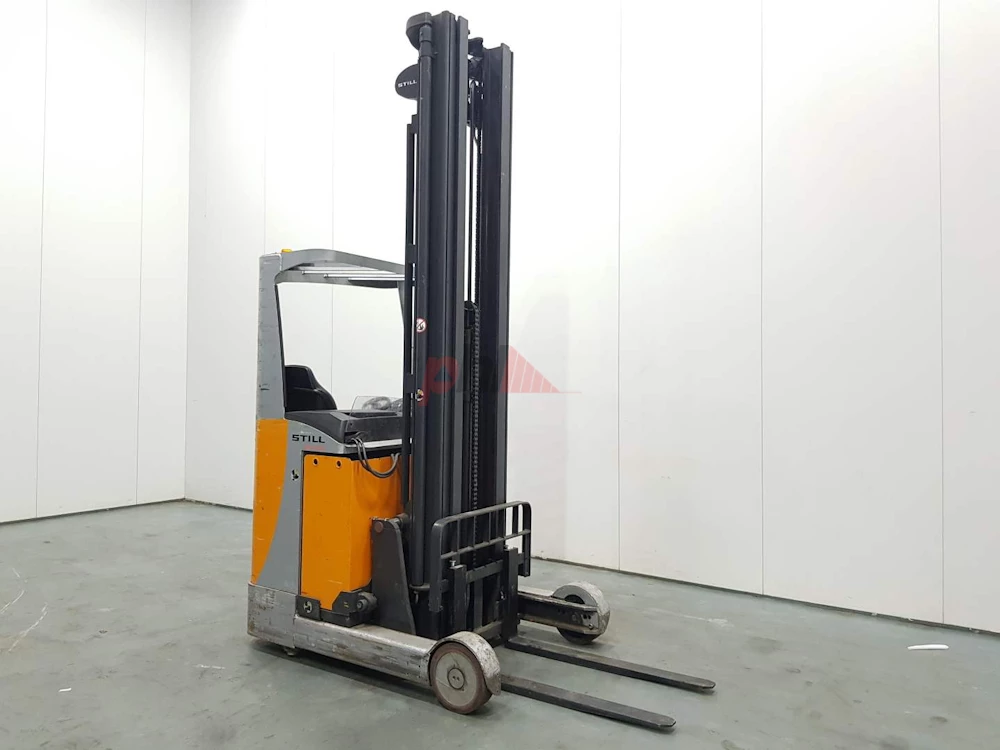

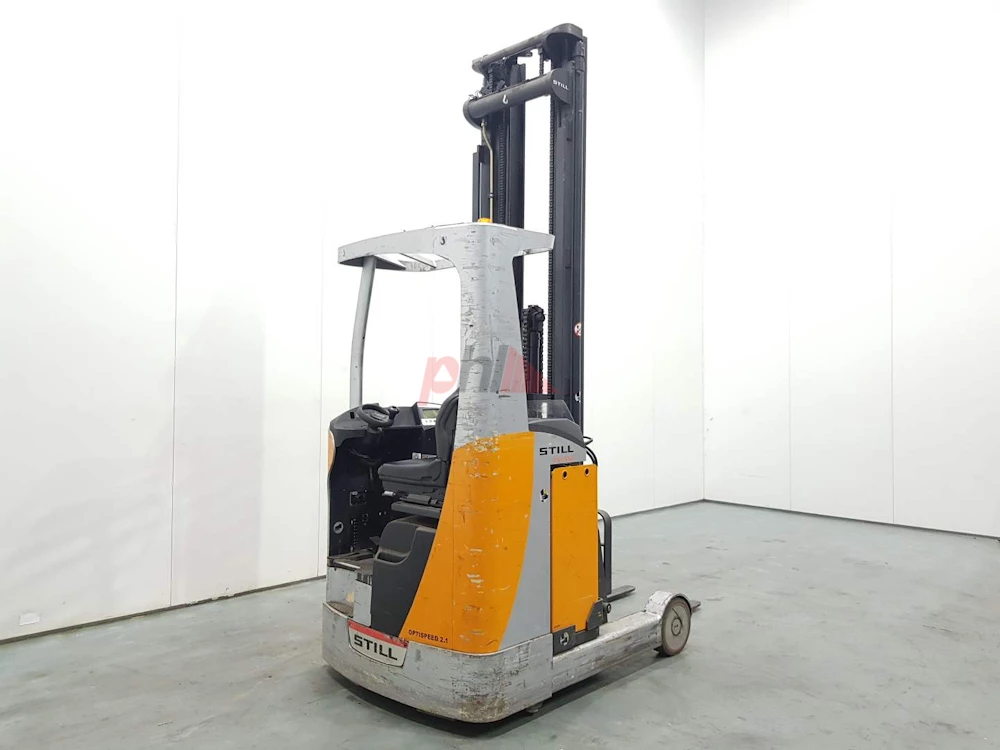

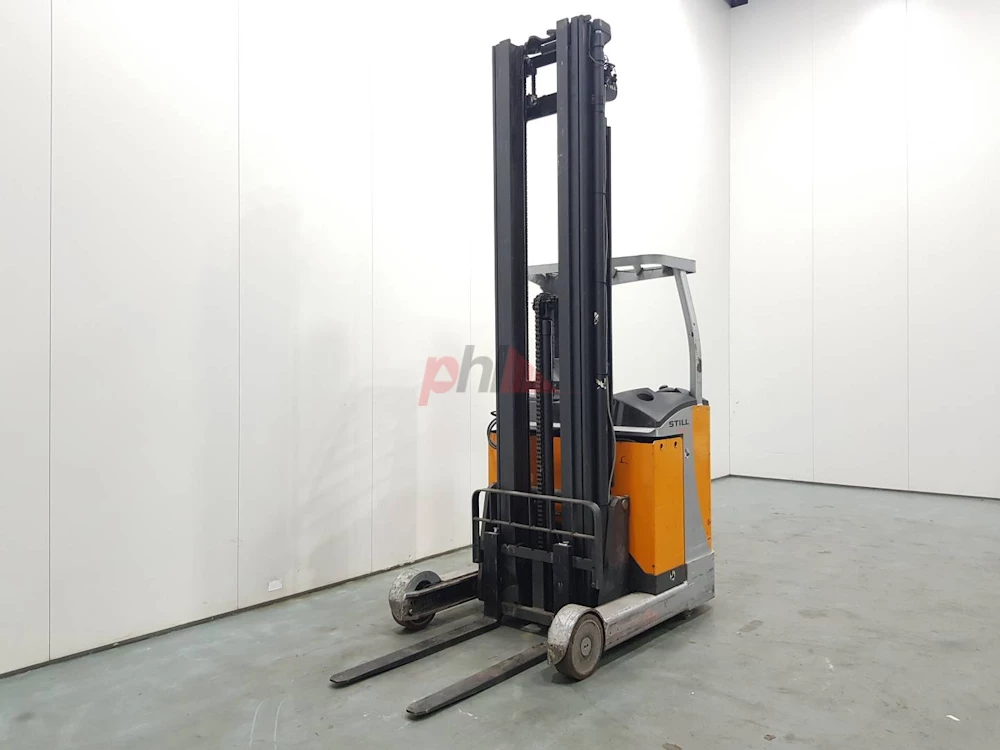

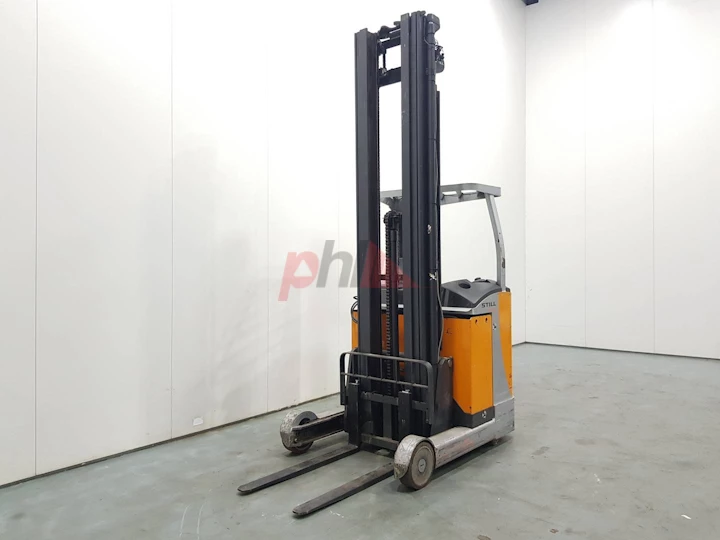

STILL REACH
£ Login to see price Register for a trade account Model FMX14
Year 2008
Euromast 3F875
Hours 11193
Capacity 1400 kg
Lift height 8750
Download
Share
Further Vehicle Details
Specification:
Type REACH
Make STILL
Valves
Character.
Load Centre (c) 500 mm

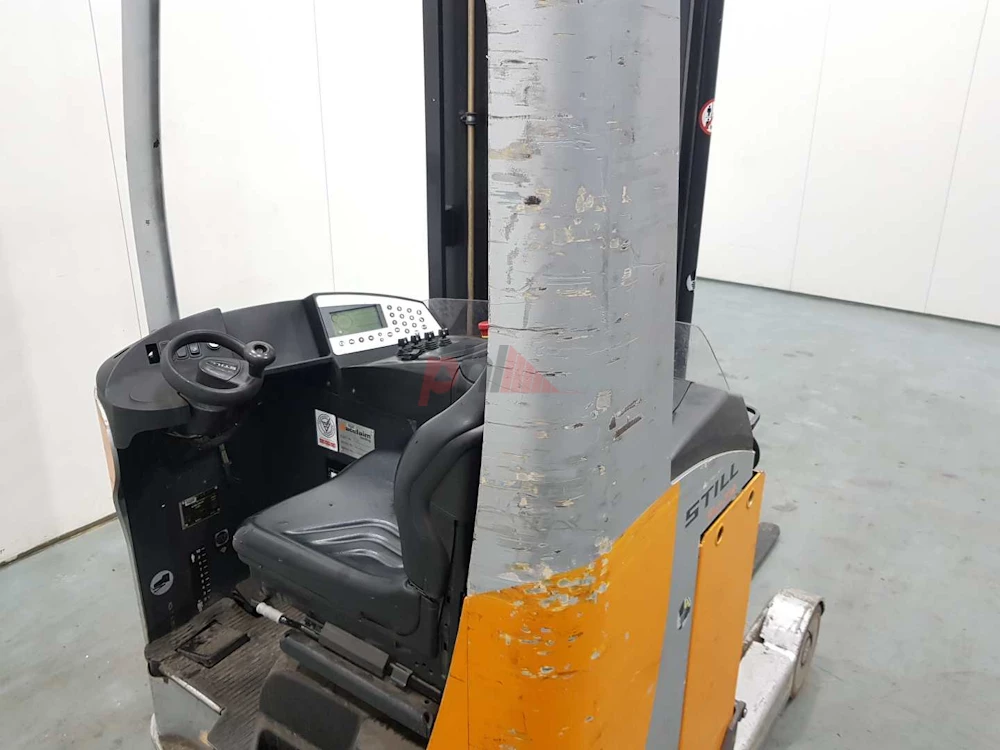

Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 2820 kg
Wheels
Tyres type Polyurethane
Dimensions
Free lift (h2) 3040 mm
Lift height (h3) 8750 mm
Height of overhead guard (cabin) (h6) 220 mm
Height of reach legs (h8) 340 mm
Overall length (l1) 2200 mm
Length to fork face (l2) 1200 mm
Overall width (b1/b2) 1250 mm
Forks length (l) 1000 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 880 mm
Width between legs (b4) 920 mm
Reach travel (l4) 570 mm
Length of chasis (l7) 1690 mm
Collapsed height (h1) 3440 mm
Forks height (s) 50 mm
Forks width (e) 100 mm
Auxiliary lift (h9) 3040 mm
Performance
Service brake mechanical/electric
Drive
Battery weight 986 kg
Drive motor (60 min rating) 6,5 kW
Battery class British Standard
Battery voltage/capacity 48V / 620Ah V/Ah
Attachment

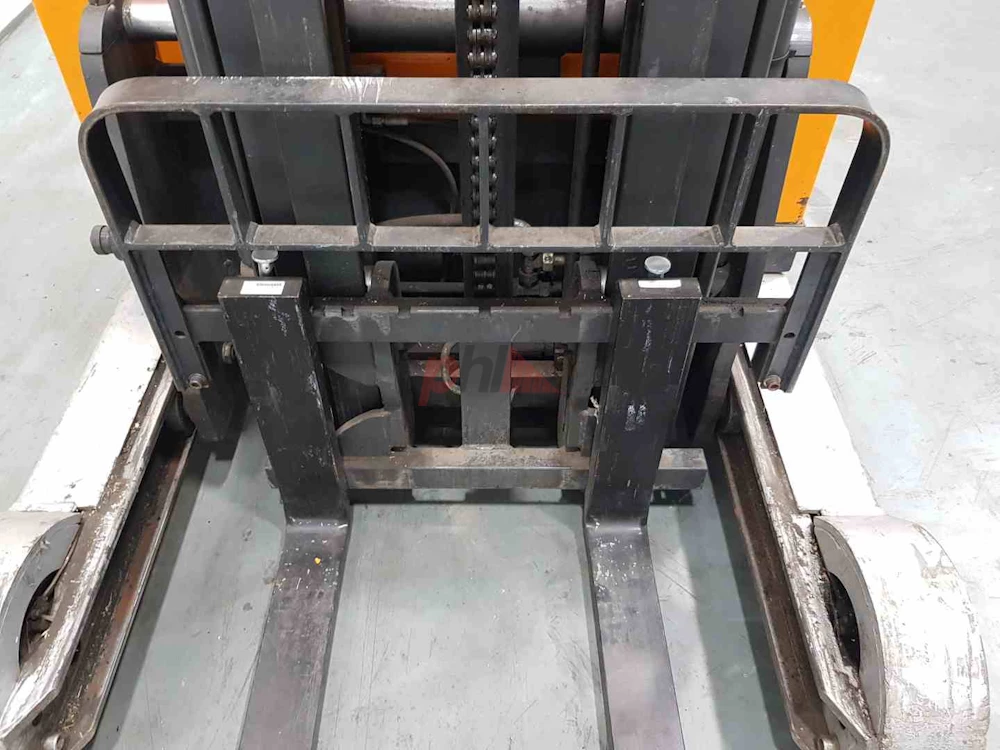

Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, Electronic seat and foot plate adjuster
Extras Hyds 3rd & 4th

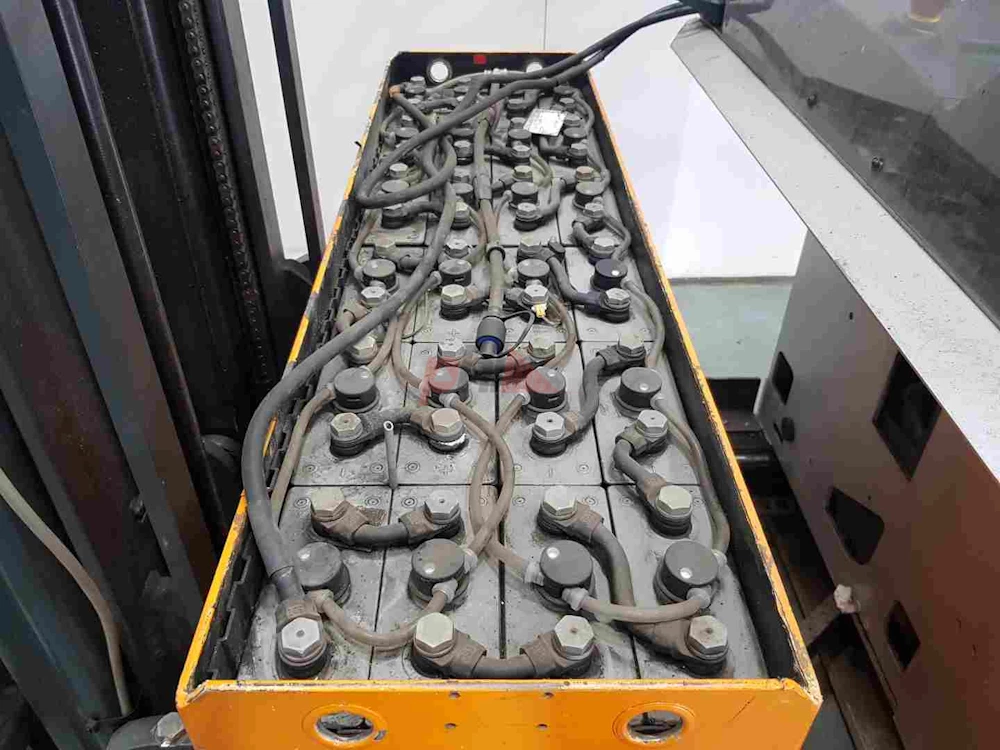

Battery
Battery Serial No RP 1223350
Battery Year (Battery Year of Manufacture) 2008
