Stock No: 455255

STILL, REACH, 1400kg Capacity, Triplex Mast type, SS

  • Model FM14
  • Year 2000
  • Euromast 3F938
  • Hours 9467
  • Capacity 1400kg
  • Lift height 9360
  • Quality Rating 3
  • Extras SS
  • Price *****

Enquire >> WhatsApp
  • Specification:
  • Type REACH
  • Make STILL
  • Valves 3,4
  • Weights
  • Service weight (Total weight ) 3830 kg
  • Wheels
  • Tyres type Polyurethane
  • Extras
  • Extras SS
  • Dimensions
  • Free lift (h2) 3330 mm
  • Lift height (h3) 9360 mm
  • Height of overhead guard (cabin) (h6) 2210 mm
  • Height of reach legs (h8) 340 mm
  • Overall length (l1) 2360 mm
  • Length to fork face (l2) 1260 mm
  • Overall width (b1/b2) 1250 mm
  • Forks length (l) 1100 mm
  • Fork carriage (class) DIN 15173 / 2A
  • Fork carriage width (b3) 1050 mm
  • Fork spread (min/max) (b5) 240/740 mm
  • Width between legs (b4) 920 mm
  • Reach travel (l4) 515 mm
  • Collapsed height (h1) 3830 mm
  • Forks width (e) 85 mm
  • Drive
  • Battery voltage/capacity 48V/560Ah V/Ah
  • Battery (Acc. to DIN) HOPPECKE
  • Performance
  • Service brake hydraulic/mechanical

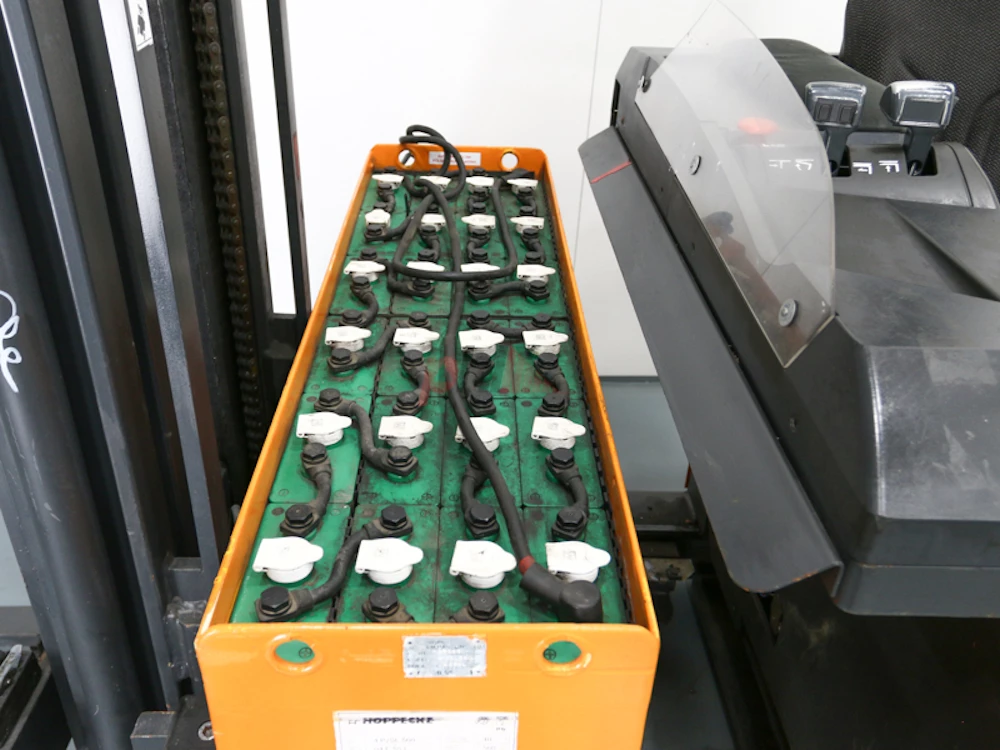

  • Battery
  • Battery Year (Battery Year of Manufacture) 28.08.04
