Stock No: 156333

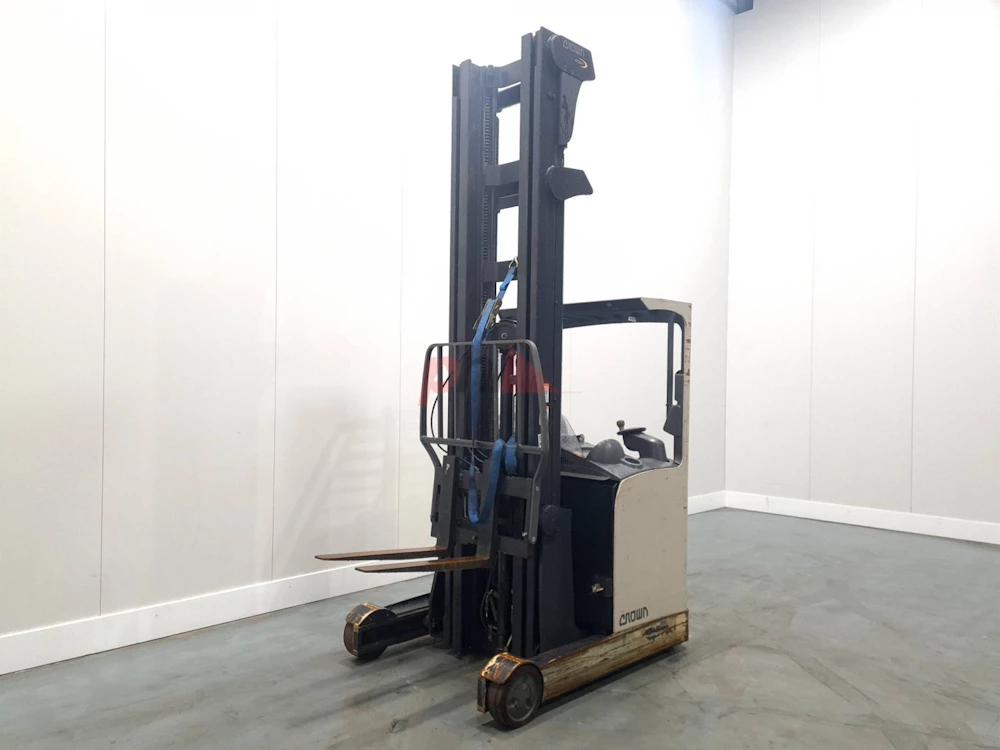

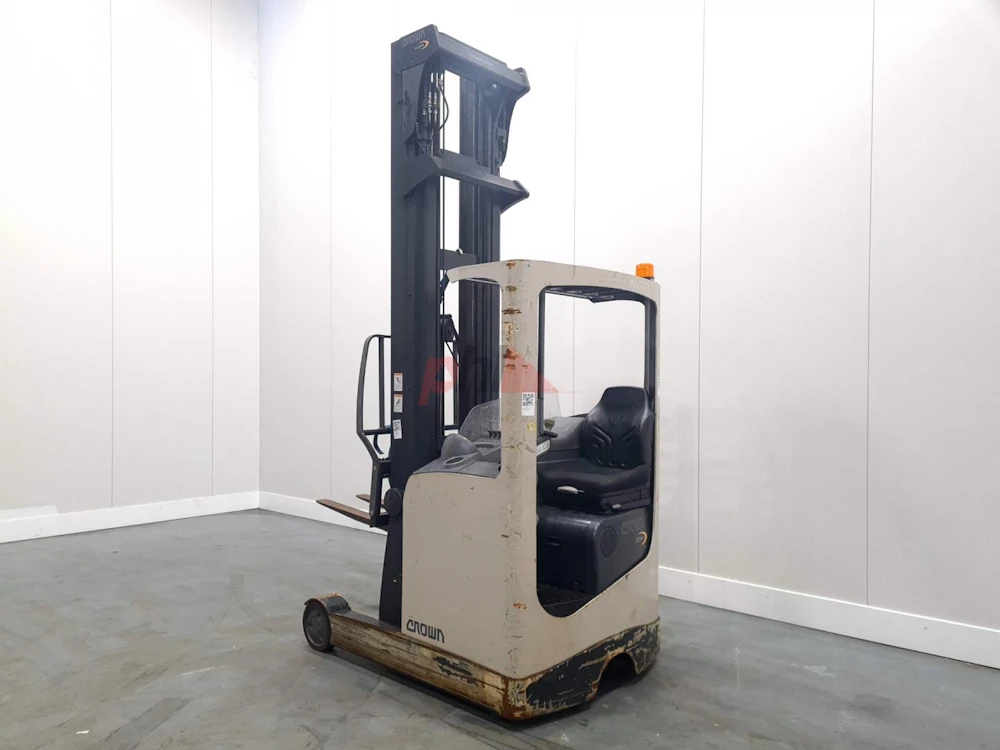

CROWN REACH

£ Login to see price Register for a trade account

Model ESR4500

Year 2007

Euromast 3F885

Hours 0

Capacity 1400 kg

Lift height 8850

Enquire about this vehicle Enquire via

Share

Further Vehicle Details

Specification:

Type REACH

Make CROWN

Valves

Character.

Load Centre (c) 600 mm

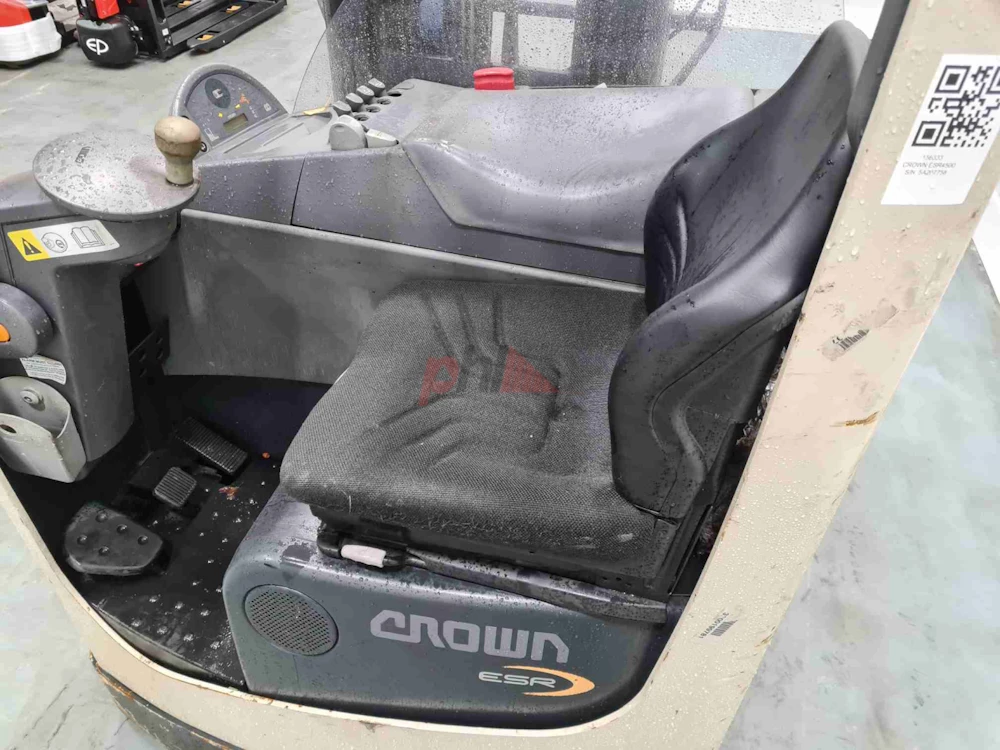

Operating mode (Characteristic) Seated

Weights

Service weight (Total weight ) 4031 kg

Wheels

Tyres type Polyurethane

Dimensions

Free lift (h2) 3000 mm

Lift height (h3) 8850 mm

Extended height (h4) 9850 mm

Height of overhead guard (cabin) (h6) 2120 mm

Height of reach legs (h8) 30 mm

Overall length (l1) 2550 mm

Length to fork face (l2) 1330 mm

Overall width (b1/b2) 1290 mm

Forks length (l) 1220 mm

Fork carriage (class) DIN 15173 / 2A

Fork carriage width (b3) 970 mm

Fork spread (min/max) (b5) 220 / 690 mm

Width between legs (b4) 970 mm

Reach travel (l4) 490 mm

Length of chasis (l7) 1780 mm

Collapsed height (h1) 3490 mm

Forks height (s) 40 mm

Forks width (e) 100 mm

Performance

Service brake hydraulic/electric

Drive

Battery weight 986 kg

Battery class British Standard

Battery voltage/capacity 48V / 560Ah V/Ah

Battery (Acc. to DIN) HAWKER PERFECT PLUS

Attachment

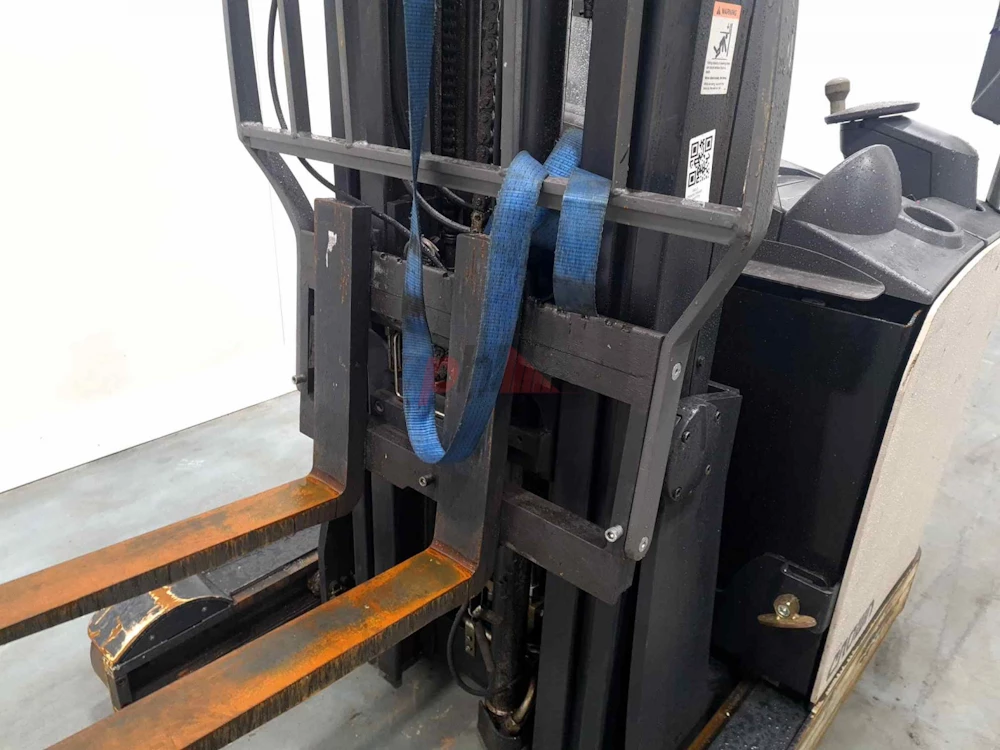

Attachments (Has attachment) Sideshift and Forks.

Attachment type (Attachment type) Sideshifts

Engine

Engine type (Engine type) electric

Extras

Extras SS.

Extras Hyds 3rd & 4th
