Stock No: 486934 Enquire about this vehicle Enquire via

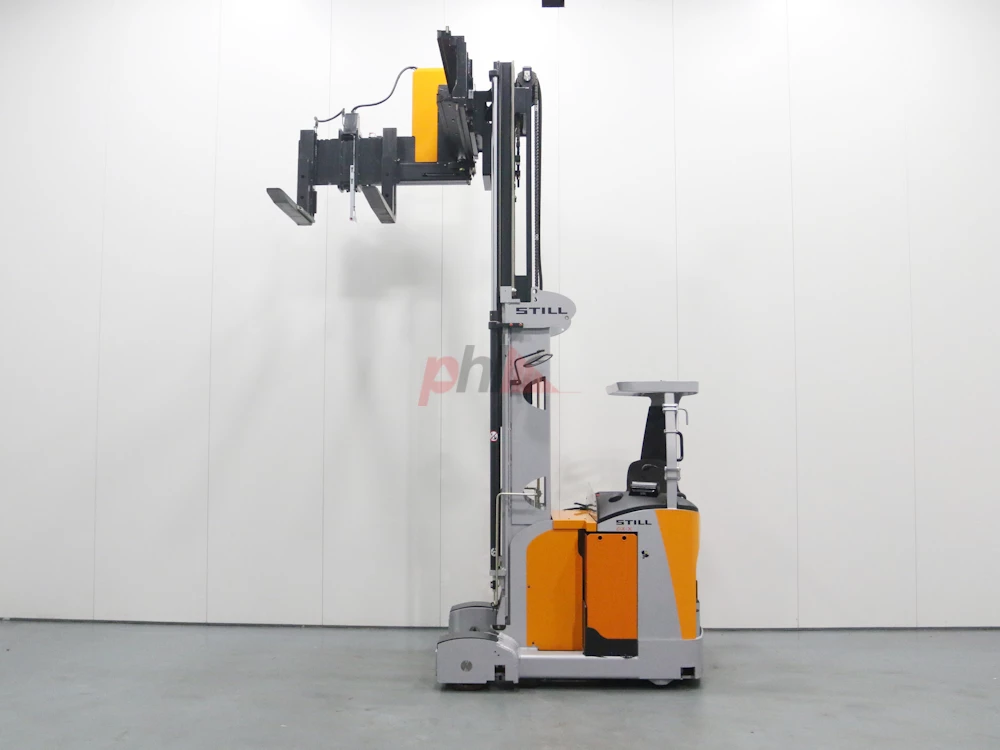

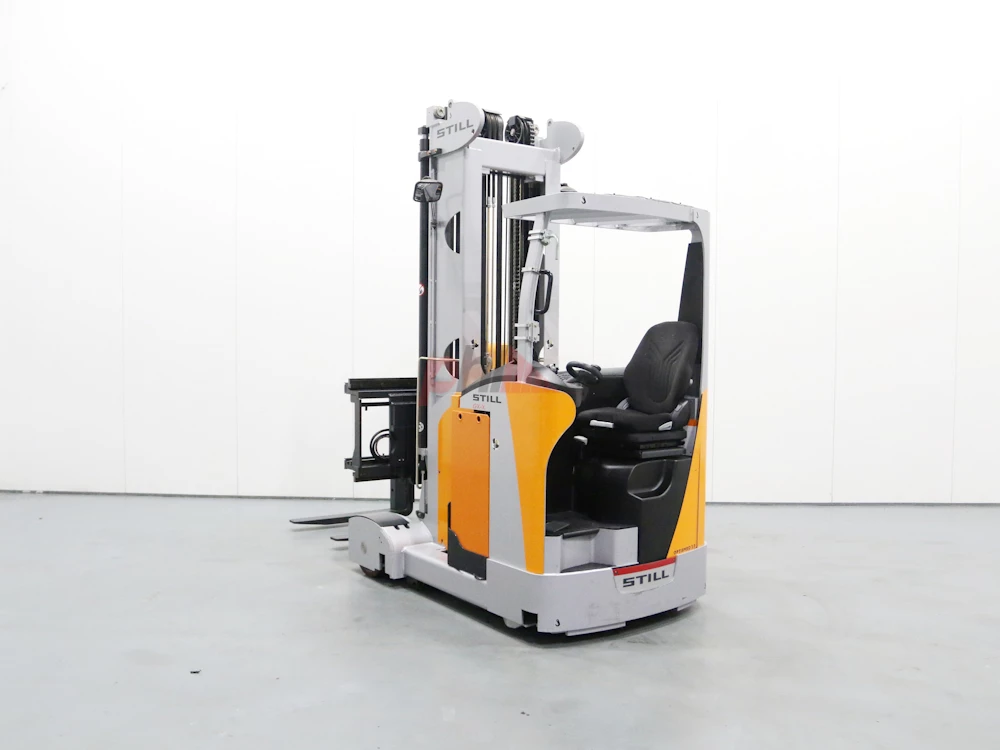

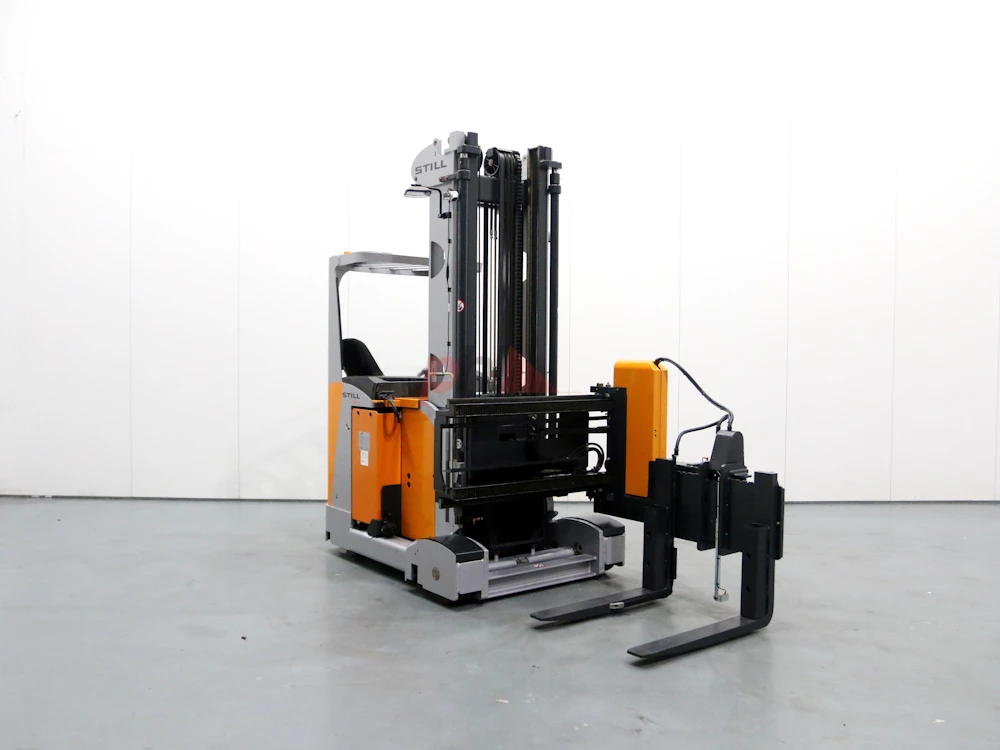

STILL TURRET MAN DOWN
££££ Login to see price Register for a trade account Model GX-X
Year 2015
Euromast 2W366

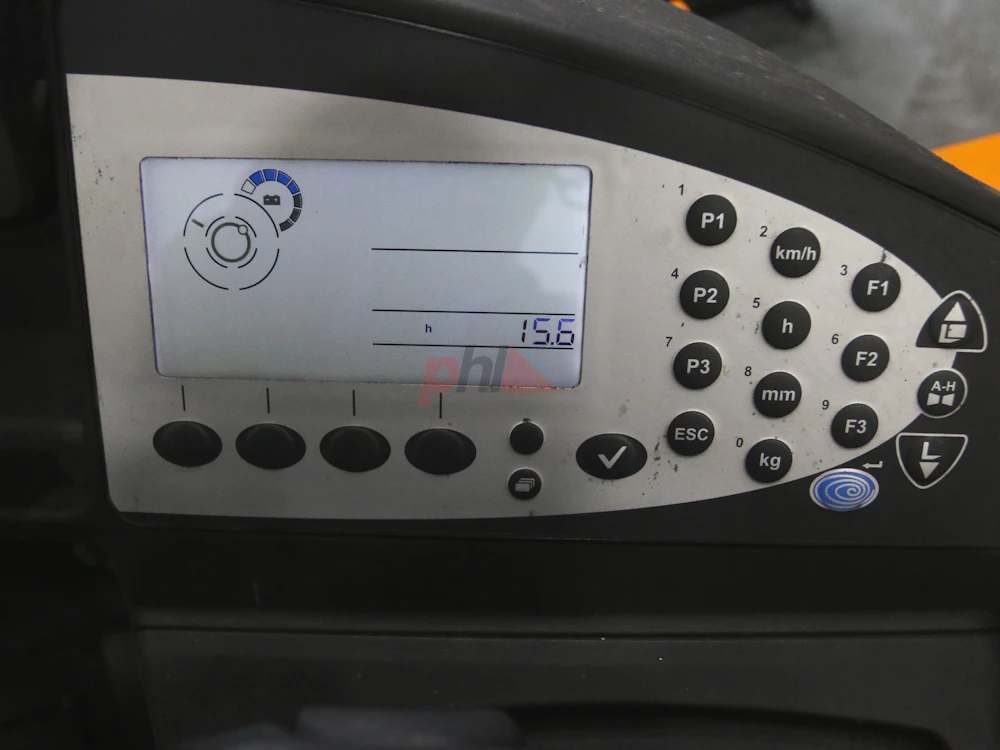

Hours 15
Capacity 600 kg
Lift height 3660
Download
Share
Further Vehicle Details
Specification:
Type TURRET MAN DOWN
Make STILL
Valves
Character.
Load Centre (c) 450-650 mm

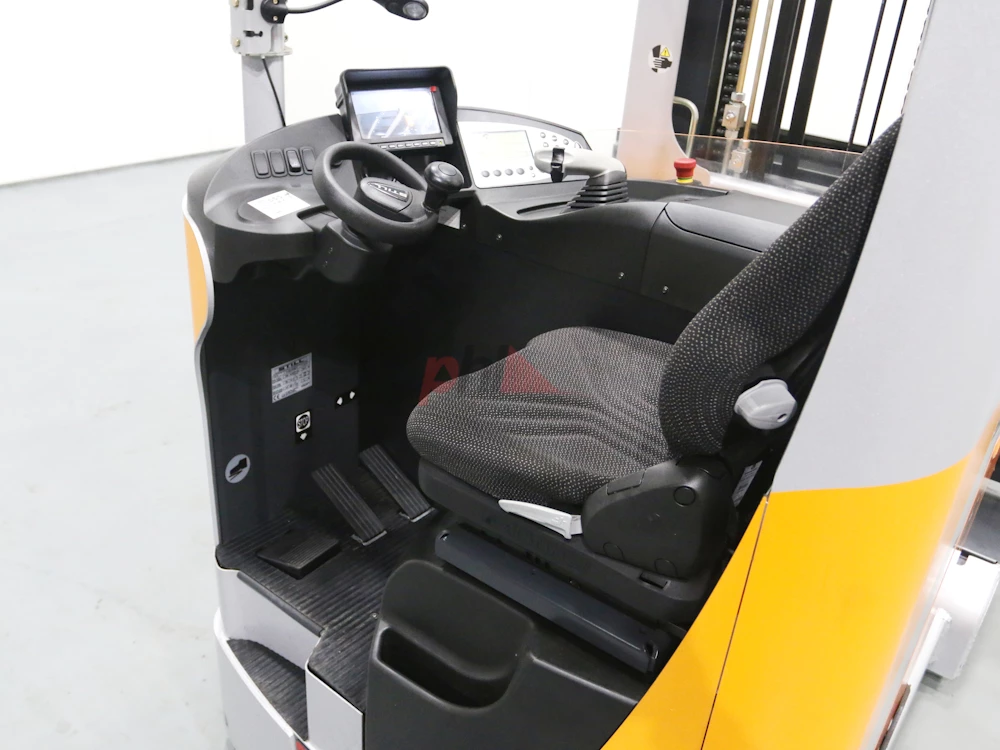

Operating mode (Characteristic) Seated
Wheelbase (y) 1350 mm
Weights
Service weight (Total weight ) 4785 kg
Wheels
Tyres type Polyurethane
Dimensions
Lift height (h3) 3660 mm
Extended height (h4) 5060 mm
Height of overhead guard (cabin) (h6) 2200 mm
Overall length (l1) 3230 mm
Overall width (b1/b2) 1450 mm
Forks length (l) 1000 mm
Fork carriage width (b3) 900 mm
Fork spread (min/max) (b5) 460 mm
Ground clearance, mast (m1) 100 mm
Ground clearance, centre of wheelbase (m2) 190 mm
Collapsed height (h1) 2910 mm
Forks height (s) 55 mm
Forks width (e) 120 mm
Fork height, lowered (h13) 80 mm
Fork pivot point (l8) 1120 mm
Rotator width (F) 245 mm
Traverse stroke (b7) 1170 mm
Traverse frame width (B) 1440 mm
Rotator length (A) 1250 mm
Overall width of chassis (b1) 1230 mm
Overall width of track wheel axle (b2) 1400 mm
AST (AST) 1450 mm
Operating clearance (a1) 44 mm
Operating clearance (a3) 180 mm
Performance
Service brake electromagnetic
Drive
Battery weight 910 kg
Battery voltage/capacity 48V/620Ah V/Ah
Battery (Acc. to DIN) STILL
Engine
Engine type (Engine type) electric
Extras

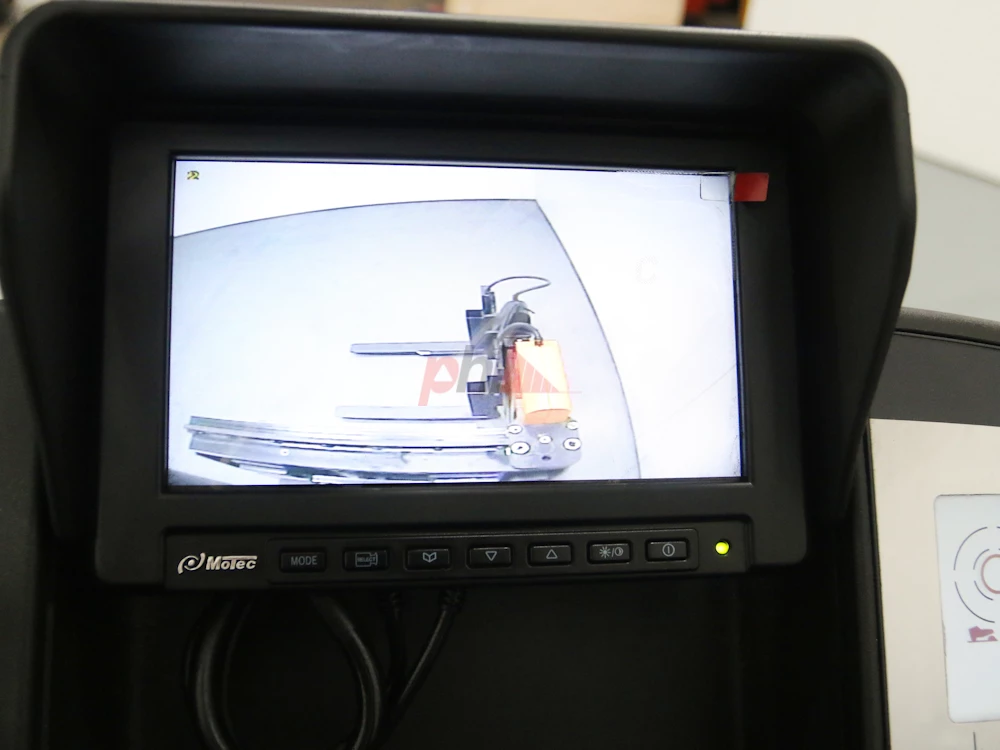

Extras x2 Camera’s
Battery
Battery Year (Battery Year of Manufacture) 2014
