Further Vehicle Details
Specification:
Type 3 WHEEL
Make LINDE
Valves 3
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 2515 kg
Wheels
Tyres type Superelastic
Tyres front condition Worn
Tyres rear condition Worn
Dimensions
Lift height (h3) 3140 mm
Extended height (h4) 4150 mm
Height of overhead guard (cabin) (h6) 2120 mm
Overall length (l1) 3250 mm
Length to fork face (l2) 2110 mm
Overall width (b1/b2) 1200 mm
Forks length (l) 1150 mm

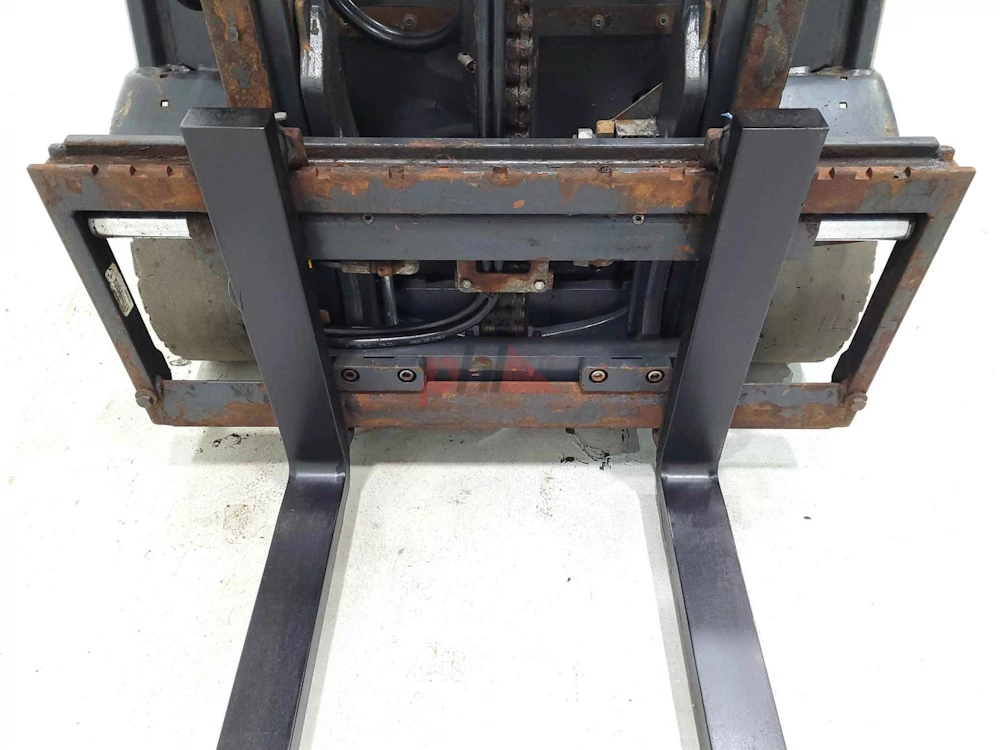

Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 1040 mm
Length of chasis (l7) 1910 mm
Collapsed height (h1) 2130 mm
Forks height (s) 40 mm
Forks width (e) 80 mm
Auxiliary lift (h9) 1650 mm
Performance
Service brake electromagnetic
Drive
Battery weight 710 kg
Drive motor (60 min rating) 2 x 4.6 kW
Battery voltage/capacity 48 / 500 V/Ah
Battery (Acc. to DIN) Marathon Classic
Attachment
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, LED lights, Reverse Image.
Extras Hyds 3rd

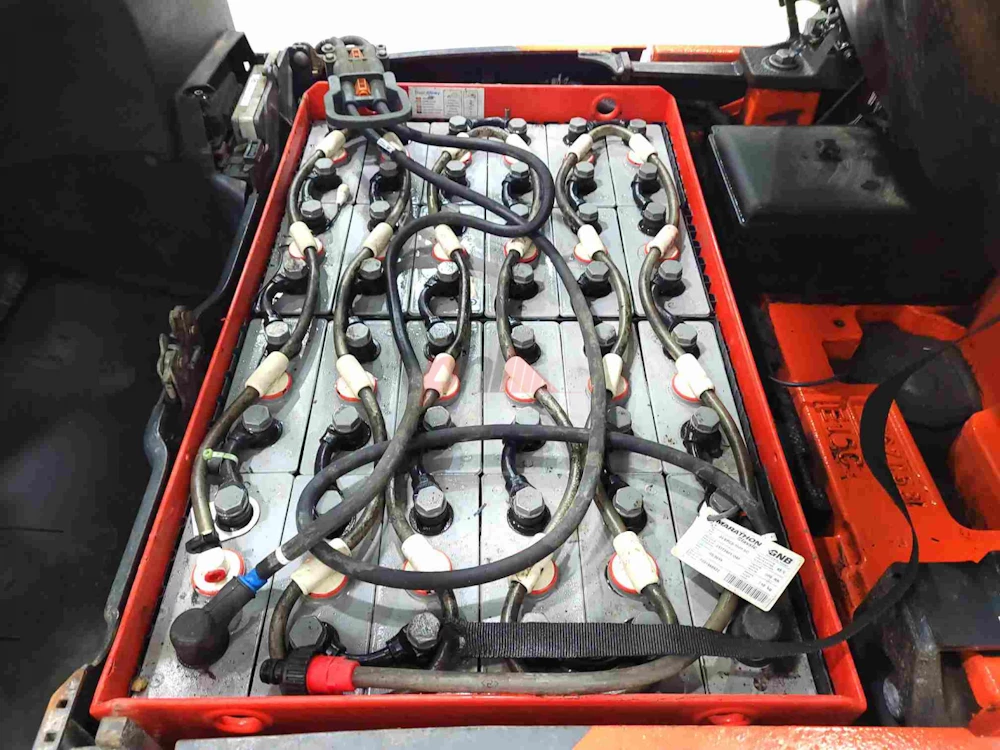

Battery
Battery Serial No 0201648932
Battery Year (Battery Year of Manufacture) 03/2019
