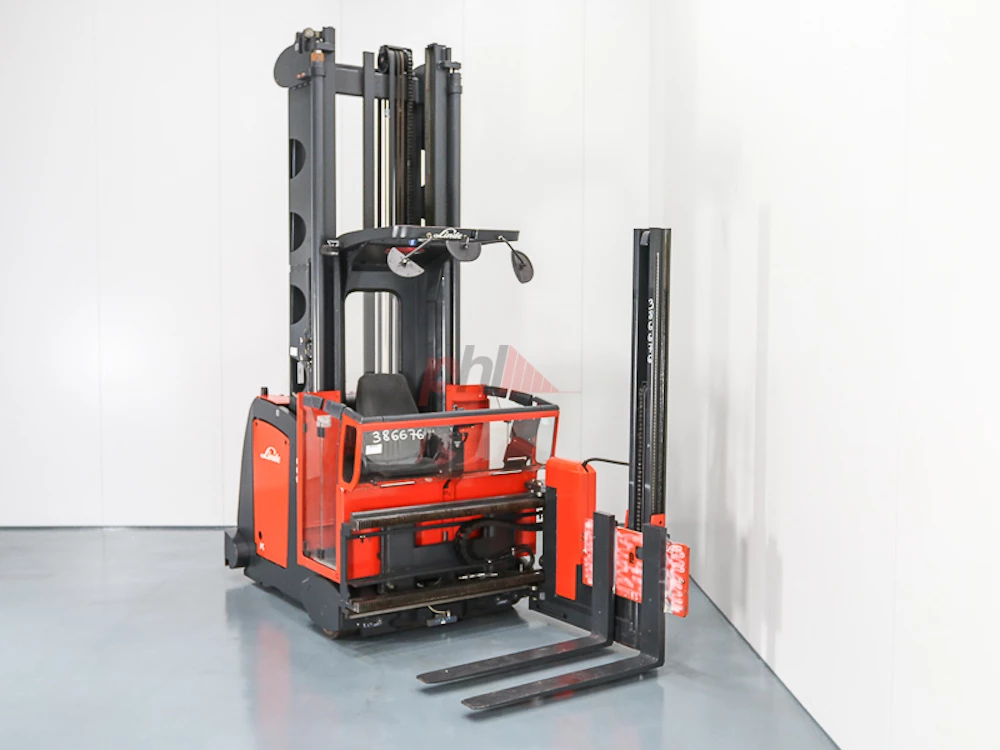

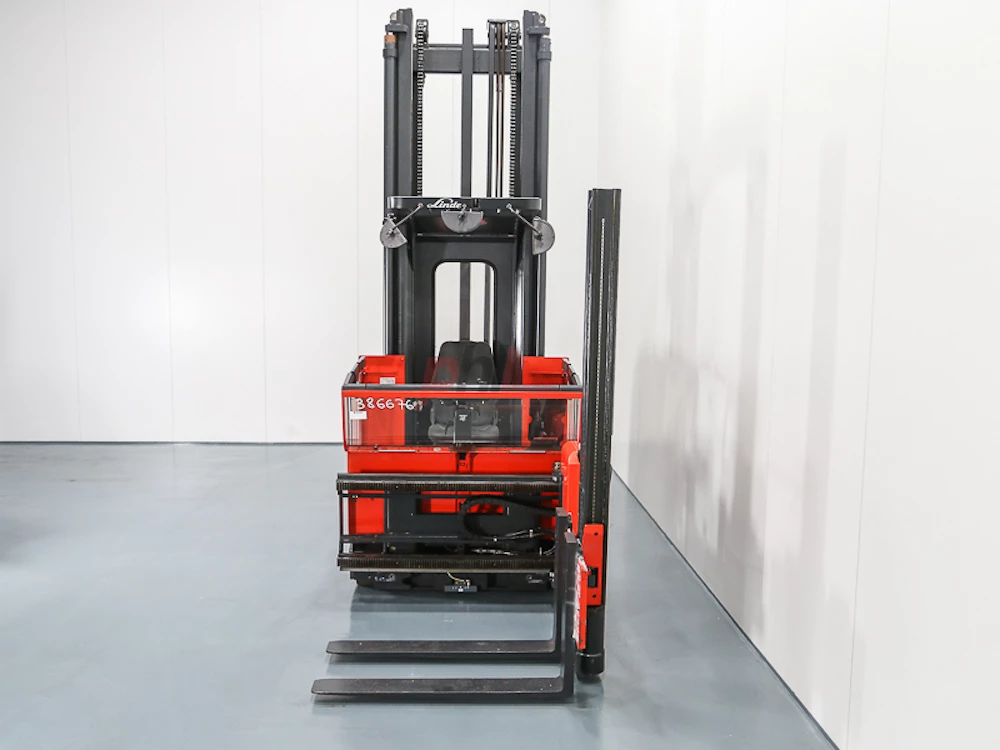

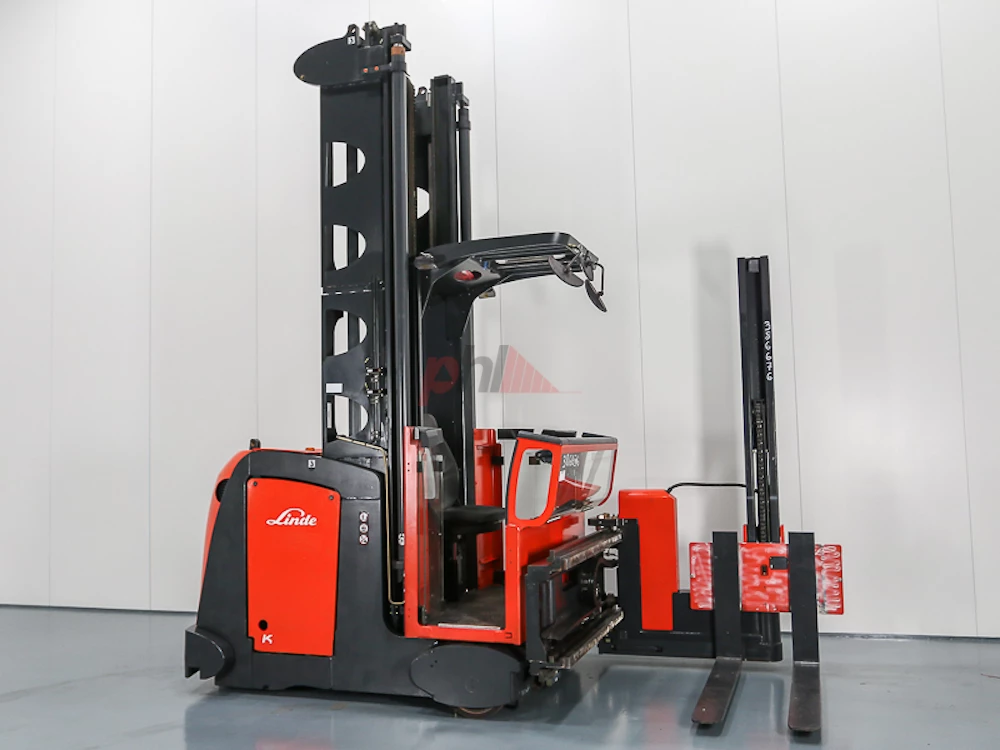

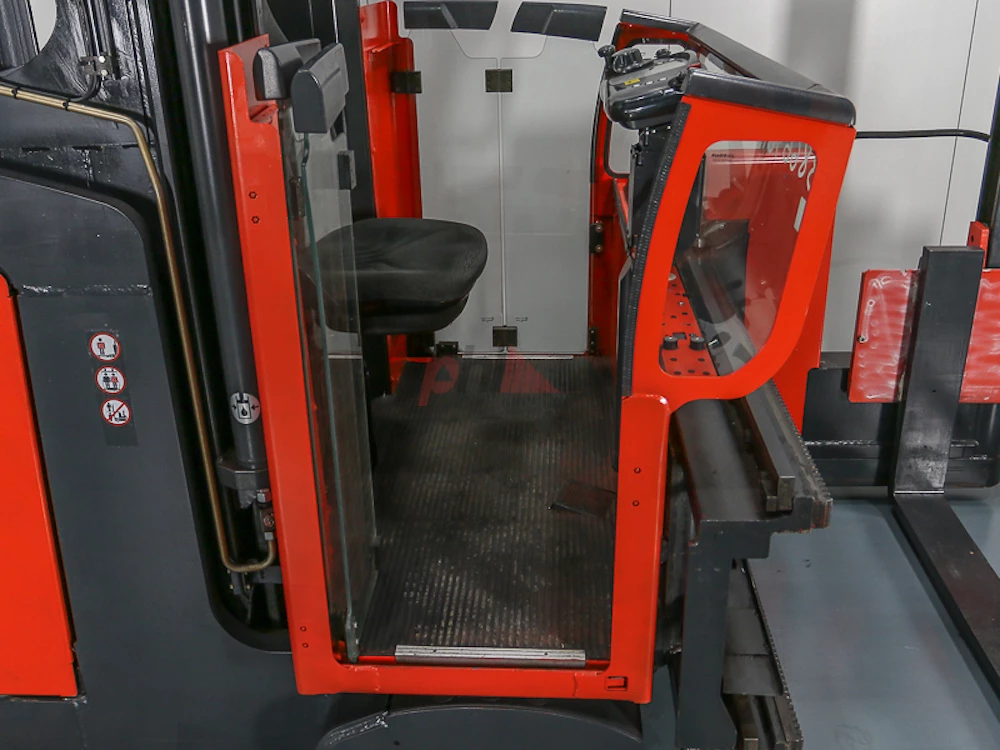

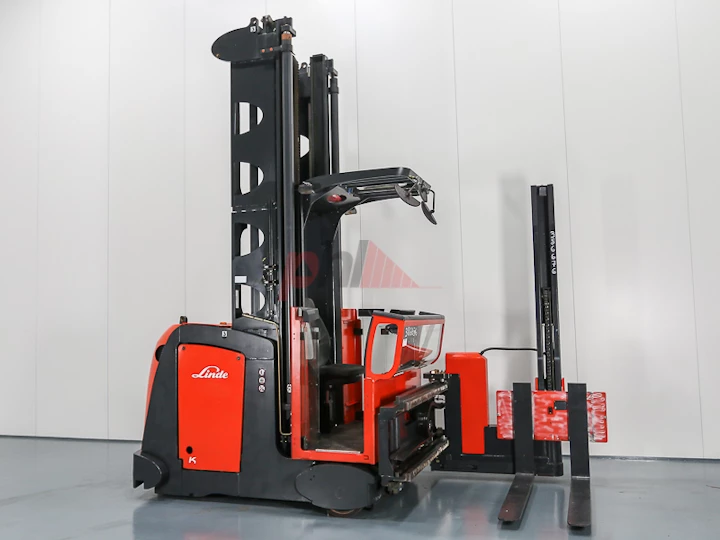

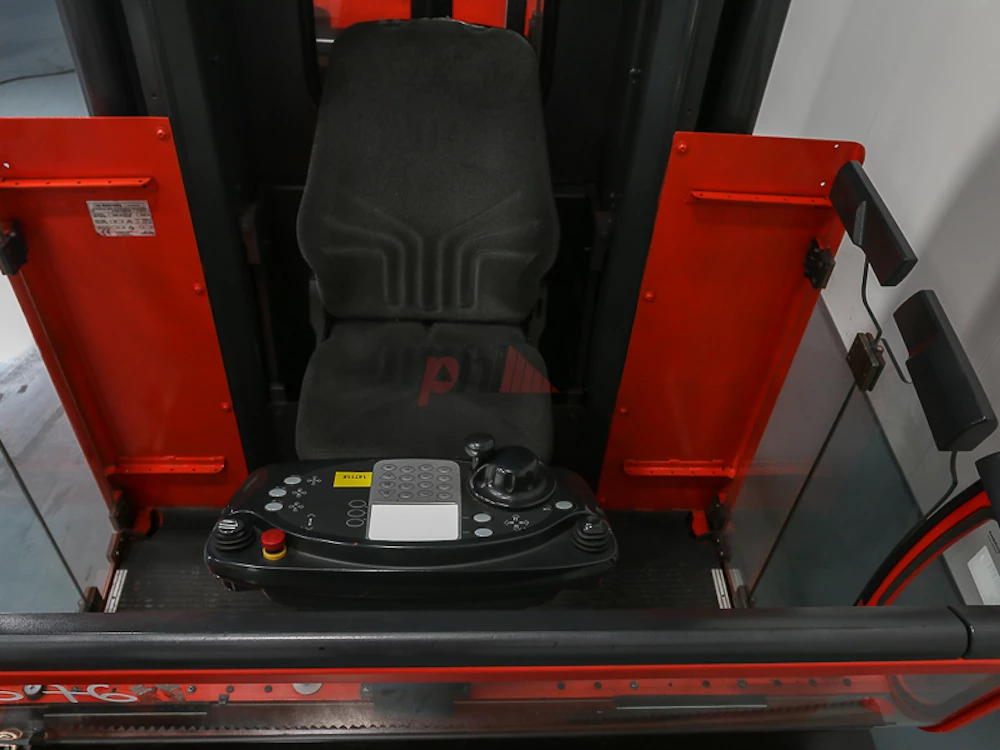

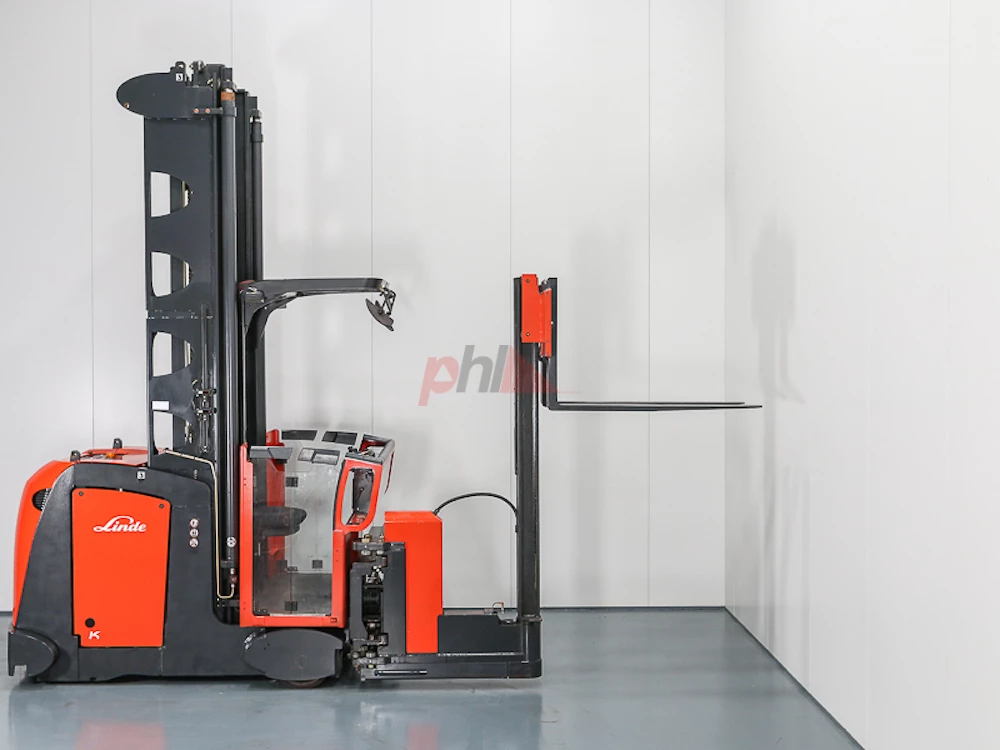

LINDE TURRET MAN UP
TURRET MAN UP • Stock No: 381503 ££££
Login to see price Model K10 011
Year 2011
Euromast 2W798
Hours 5982
Capacity 1000 kg
Lift height 6240
Back to search results
![LINDE TURRET MAN UP]()
![LINDE TURRET MAN UP]()
![LINDE TURRET MAN UP]()
![LINDE TURRET MAN UP]()
![LINDE TURRET MAN UP]()
Stock No: 388815 Enquire about this vehicle Enquire via
LINDE TURRET MAN UP
GBP 18750.00 USD 23760.00 EUR 22490.00 Register for a trade account Model K10 011
Year 2012
Euromast 2W790
Hours 0
Capacity 1000 kg
Download
Share
Further Vehicle Details
Specification:
Type TURRET MAN UP
Make LINDE
Valves
Character.
Load Centre (c) 530/630/730 mm
Operating mode (Characteristic) Order Picker
Wheelbase (y) 1650 mm
Weights
Service weight (Total weight ) 6100 kg
Wheels
Tyres type Polyurethane
Dimensions
Height of overhead guard (cabin) (h6) 2600 mm
Overall length (l1) 3500 mm
Forks length (l) 1100 mm
Fork carriage width (b3) 900 mm
Ground clearance, mast (m1) 65 mm
Ground clearance, centre of wheelbase (m2) 75 mm
Collapsed height (h1) 4350 mm
Seat/stand height (h7) 470 mm
Forks height (s) 58 mm
Forks width (e) 125 mm
Fork height, lowered (h13) 75 mm
Platform height, raised (h12) 5950 mm
Auxiliary lift (h9) 1975 mm
Fork pivot point (l8) 1275 mm
Rotator width (F) 260 mm
Traverse stroke (b7) 1175 mm
Traverse frame width (B) 1370 mm
Rotator length (A) 580 mm
Overall width of chassis (b1) 1170 mm
Overall width of track wheel axle (b2) 1300 mm
Total lift (h25) 7900 mm
Load length (l6) 1100 mm
AST (AST) 1550 mm
Performance
Service brake electromagnetic
Drive
Battery voltage/capacity 48v/560Ah V/Ah
Engine
Engine type (Engine type) electric
Battery
Battery make CHLORIDE
Battery Year (Battery Year of Manufacture) 2011
