LINDE GAS
GAS • Stock No: 333139 £££
Login to see price Model H30T - 02
Year 2015
Euromast 2W415
Hours 5931
Capacity 3000 kg
Lift height 4150
Back to search results
Stock No: 330142 Enquire about this vehicle Enquire via
LINDE GAS
GBP 16750.00 USD 20980.00 EUR 20190.00 Register for a trade account Model H30T-02 TWIN WHEEL
Year 2018
Euromast 3F465
Hours 7365
Capacity 3000 kg
Lift height 4650
Download
Share
Further Vehicle Details
Specification:
Type GAS
Make LINDE
Valves 3
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Wheelbase (y) 1930 mm
Weights
Service weight (Total weight ) 4755 kg
Axle load without load (front/rear) 1950/2270 kg
Axle load with load (front/rear) 6380/800 kg
Wheels
Tyres type Superelastic
Tyres front condition 15%
Tyres rear condition 20%
Tyre size front 27X10-12 mm
Tyre size rear 23X9-10 mm
Track width front (b10) 1008 mm
Track width rear (b11) 932 mm
Dimensions
Mast or fork carrage tilt (alpha,beta) 5/8 grad
Lift height (h3) 4650 mm
Extended height (h4) 4720 mm
Height of overhead guard (cabin) (h6) 2110 mm
Overall length (l1) 4800 mm
Length to fork face (l2) 2800 mm
Overall width (b1/b2) 1600 mm
Forks length (l) 2000 mm
Fork carriage (class) DIN 15173 / 3A
Fork carriage width (b3) 1150 mm
Ground clearance, mast (m1) 119 mm
Ground clearance, centre of wheelbase (m2) 173 mm
Turning radius (Wa) 2444 mm
Length of chasis (l7) 2620 mm
Ast across 1000x1200 (Ast) 4089 mm
Ast along 800x1200 (Ast) 4289 mm
Towing coupling height (h10) 698 mm
Collapsed height (h1) 2200 mm
Seat/stand height (h7) 1105 mm
Forks height (s) 60 mm
Forks width (e) 130 mm
Auxiliary lift (h9) 1610 mm
Performance
Travel speed (With, w/o load) 22 km/h
Lifting speed (With, w/o load) 0.47/0.48 m/s
Lowering speed (With, w/o load) 0.52/0.54 m/s
Climbing ability (30 min rating - with, w/o load) 27/30 %
Acceleration time (With, w/o load) 6.1/5.3 sec
Service brake hydrostatic
Drive
Drive motor (60 min rating) 39 kW
Battery voltage/capacity 12V V/Ah
Other
Noise level 76 dB
Working pressure 170 bar
Oil flow (For attachments) 32 l/min
Traction control HYDROSTATIC TRANSMISSION

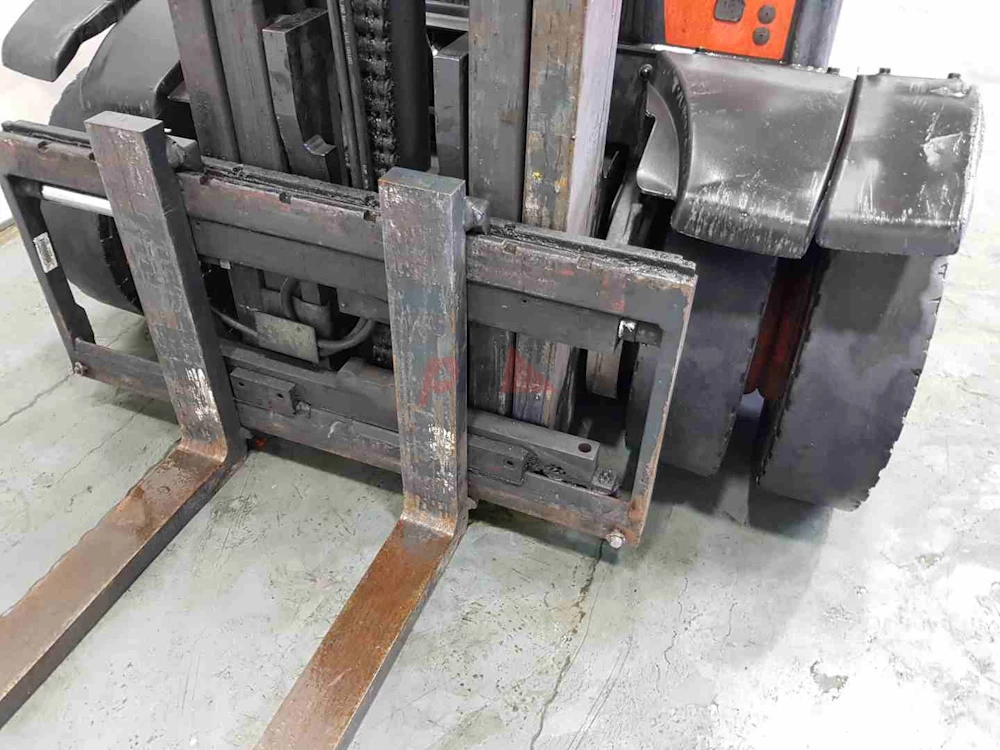

Attachment
Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

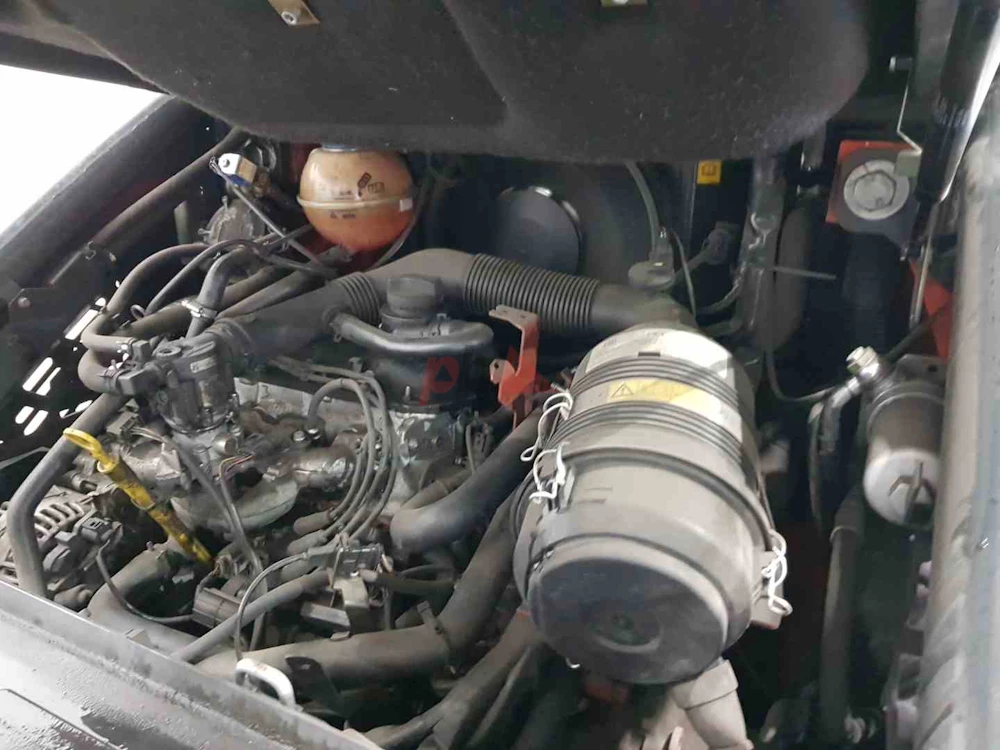

Engine
Manufacturer of engine/type VW / AUDI
Engine rated power (ISO 1585) 39 kW
Rated rpm 2600 rpm
Cylinders/Displac. ccm 4/1984
Fuel consumption (VDI) 2.3/3.0 l/h
Engine type (Engine type) gas
Extras
Extras SS, LED Lights, Twin Wheels.
Extras Hyds 3rd
