Stock No: 992608

EP ELECTRIC

££££ Register for a trade account
Model EFL303B 205 HC
Year 2023
Euromast 3F480
Hours 1
Capacity 3000 kg
Lift height 4800
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type ELECTRIC
Make EP
Valves

Character.

Load Centre (c) 500 mm
Operating mode (Characteristic) Seated

Weights

Service weight (Total weight ) 4620 kg

Wheels

Tyres type Superelastic
Tyres front condition NEW
Tyres rear condition NEW

Dimensions

Mast or fork carrage tilt (alpha,beta) 6/10 grad
Lift height (h3) 4800 mm
Extended height (h4) 5880 mm
Height of overhead guard (cabin) (h6) 2180 mm
Overall length (l1) 3610 mm
Length to fork face (l2) 2540 mm
Overall width (b1/b2) 1210 mm
Forks length (l) 1070 mm
Fork carriage (class) DIN 15173 / 3A
Fork carriage width (b3) 1100 mm
Ground clearance, mast (m1) 130 mm
Turning radius (Wa) 2347 mm
Length of chasis (l7) 2365 mm
Collapsed height (h1) 2100 mm
Seat/stand height (h7) 1110 mm
Forks height (s) 45 mm
Forks width (e) 100 mm

Performance

Service brake hydraulic/mechanical

Drive

Charger Type 80V / 65Ah LITHIUM ION Charger, 320A Plug, 3 Phase With BMS.
Battery weight 160 kg
Drive motor (60 min rating) 10 kW
Battery voltage/capacity 80V / 205Ah V/Ah
Battery (Acc. to DIN) LITHIUM

Attachment

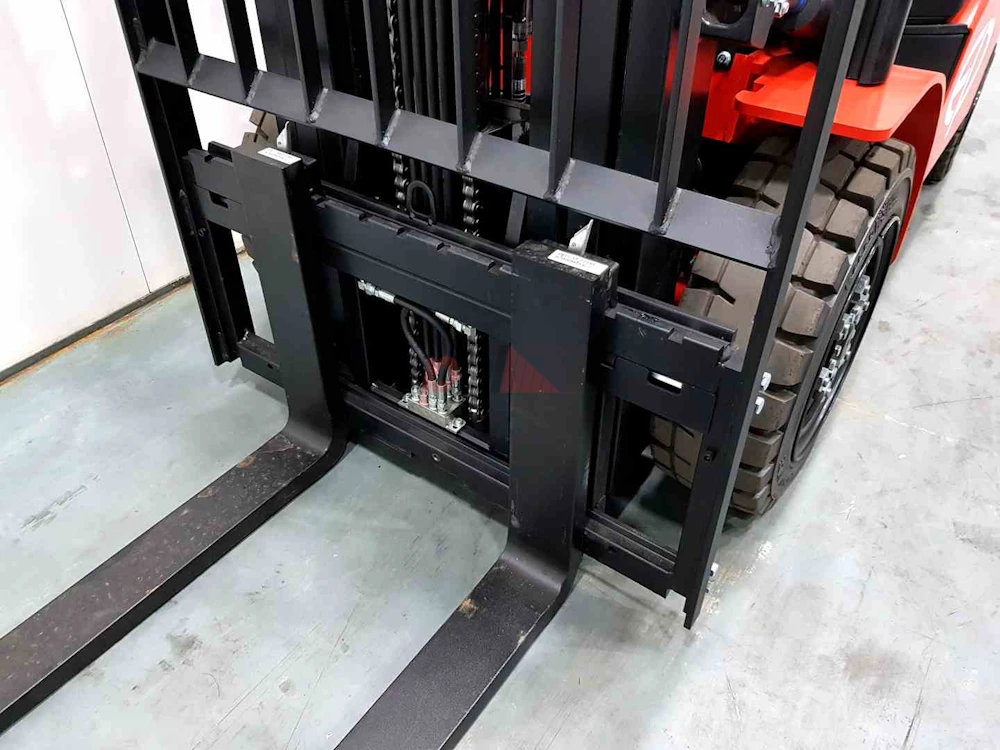

Attachments (Has attachment) Fork Positioners, Sideshift and Forks.
Attachment type (Attachment type) Fork positioners, shaft guided

Engine

Engine type (Engine type) electric

Extras

Extras SS, Fork Positioning, LED Lights, Half Cab, Cabin Fan.
Extras Hyds 3rd & 4th

Battery

Battery Year (Battery Year of Manufacture) 2023
