Stock No: 854430 Enquire about this vehicle Enquire via

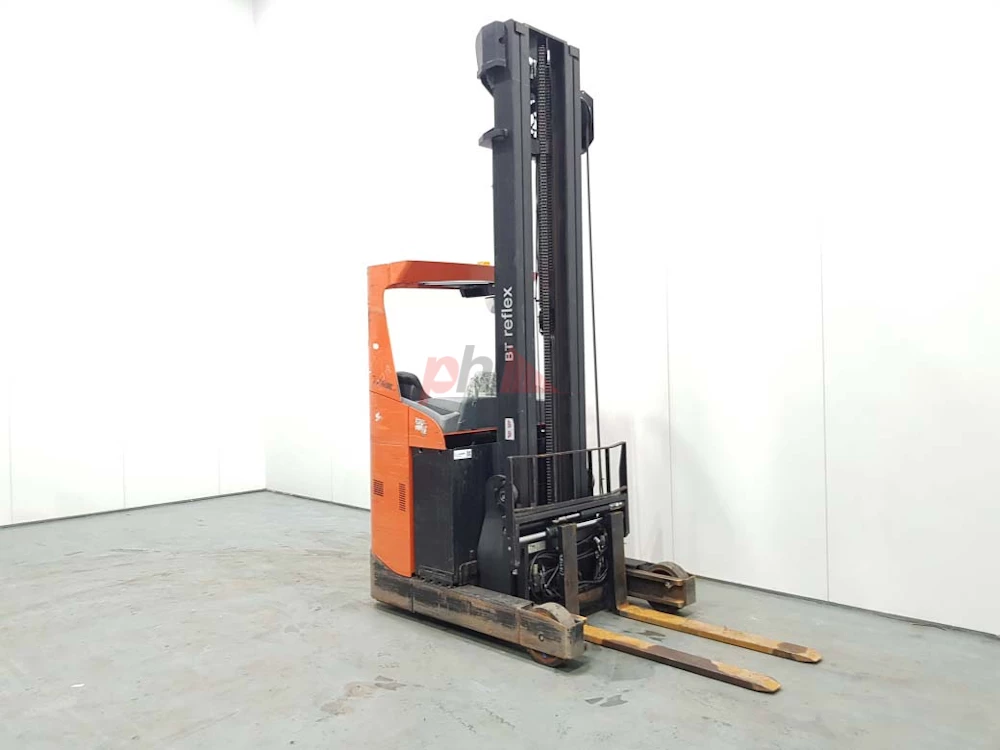

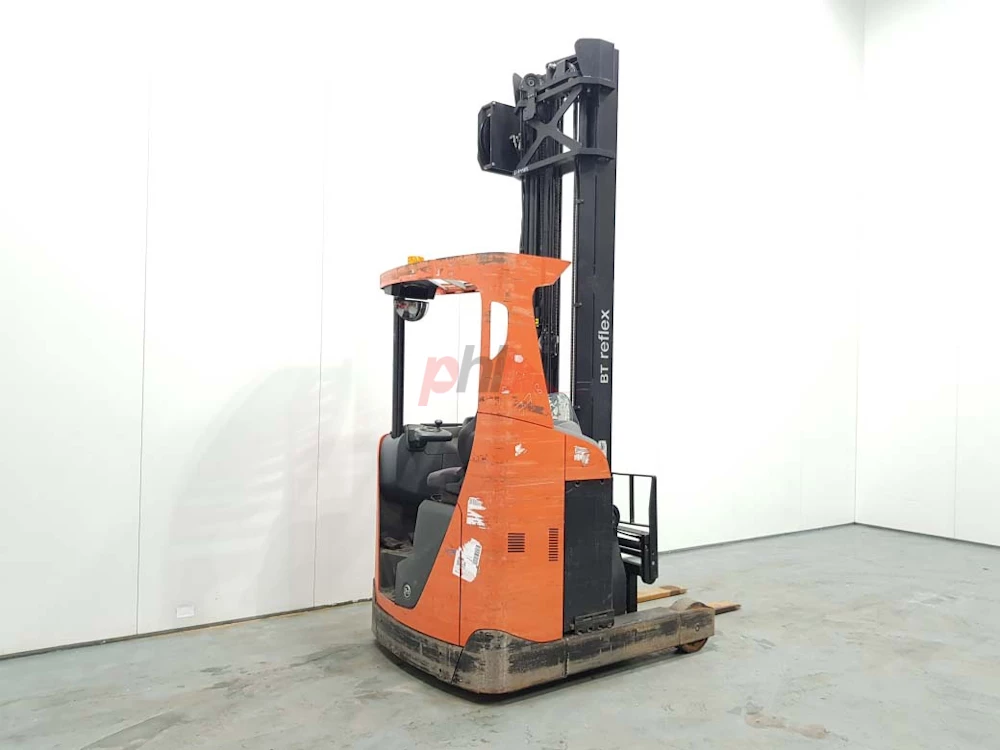

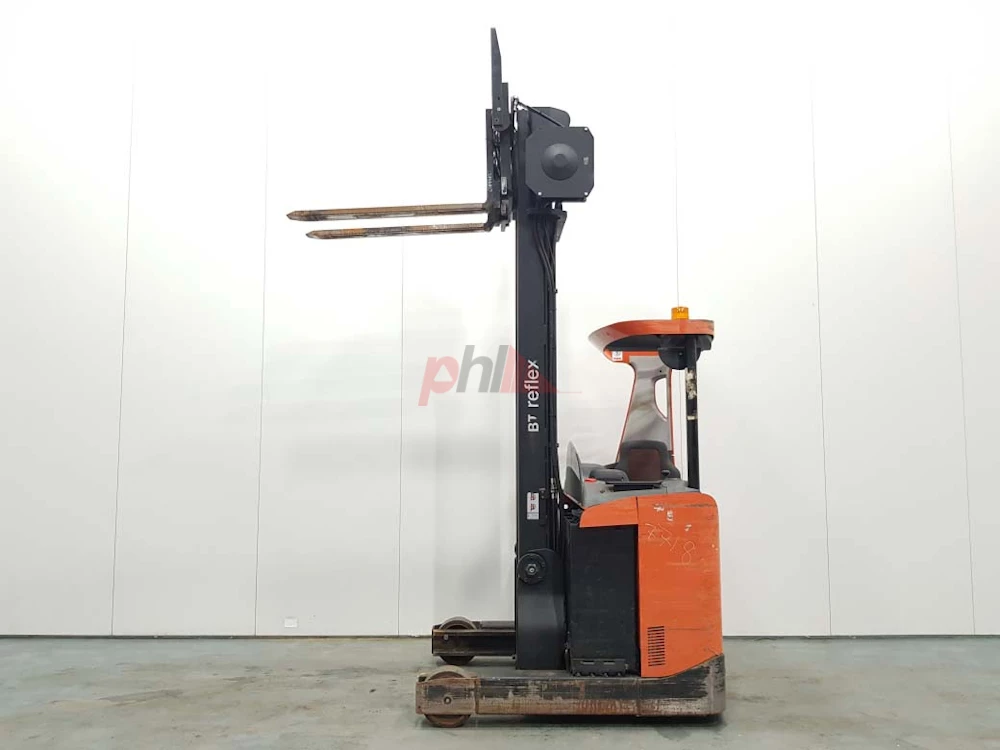

BT REACH
££ Login to see price Register for a trade account Model RRE160
Year 2012
Euromast 3F850
Hours 15177
Capacity 1600 kg
Lift height 8500
Download
Share
Further Vehicle Details
Specification:
Type REACH
Make BT
Valves
Character.
Load Centre (c) 600-1250 mm

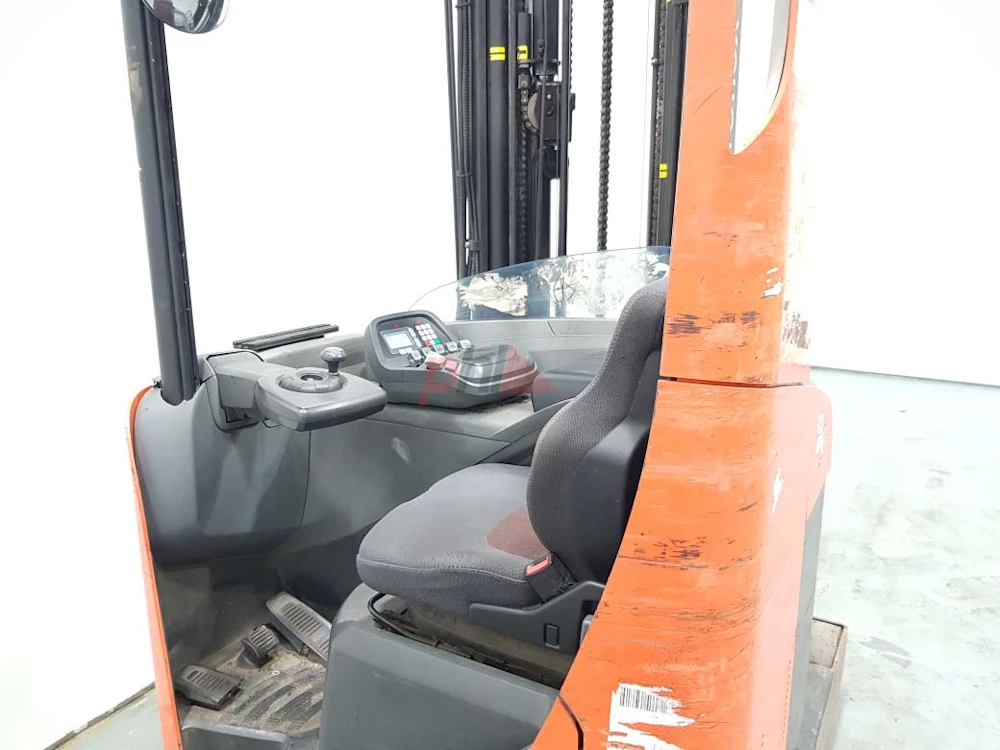

Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 4226 kg
Wheels
Tyres type Polyurethane
Dimensions
Free lift (h2) 2930 mm
Lift height (h3) 8500 mm
Height of overhead guard (cabin) (h6) 2200 mm
Height of reach legs (h8) 300 mm
Overall length (l1) 2470 mm
Length to fork face (l2) 1270 mm
Overall width (b1/b2) 1280 mm
Forks length (l) 1200-2000 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 1100 mm
Fork spread (min/max) (b5) 870-260 mm
Width between legs (b4) 900 mm
Reach travel (l4) 460 mm
Ground clearance, mast (m1) 55 mm
Length of chasis (l7) 1750 mm
Collapsed height (h1) 3520 mm
Forks width (e) 130 mm
Performance
Service brake hydraulic/electric
Drive

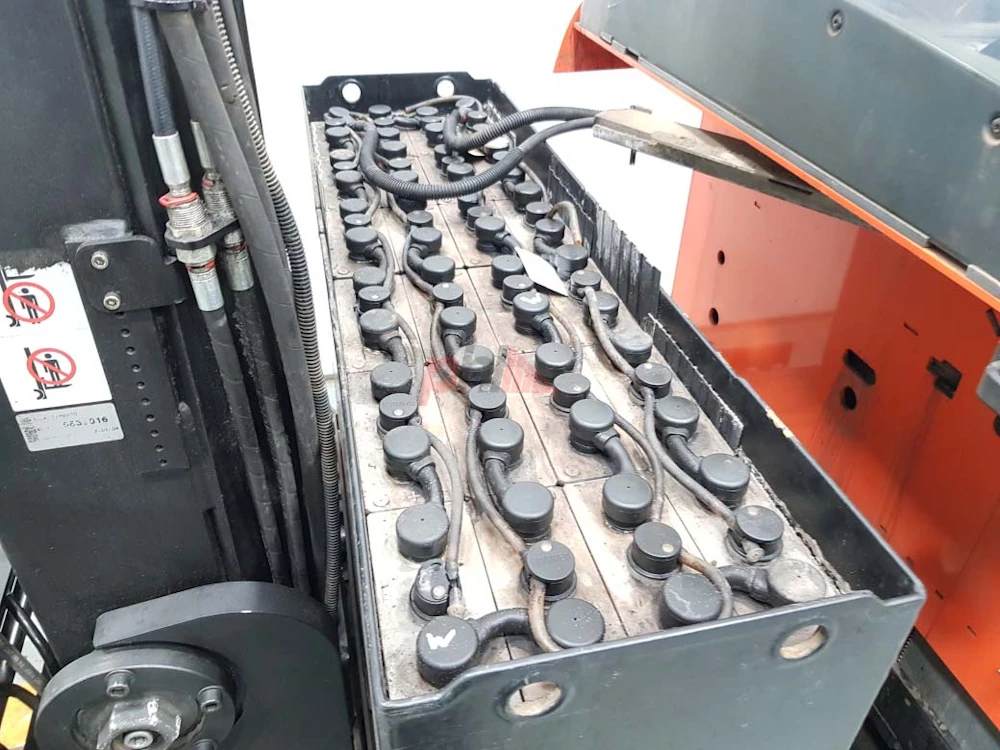

Battery weight 1235 kg
Battery voltage/capacity 48V / 620Ah V/Ah
Battery (Acc. to DIN) MIDAC
Attachment

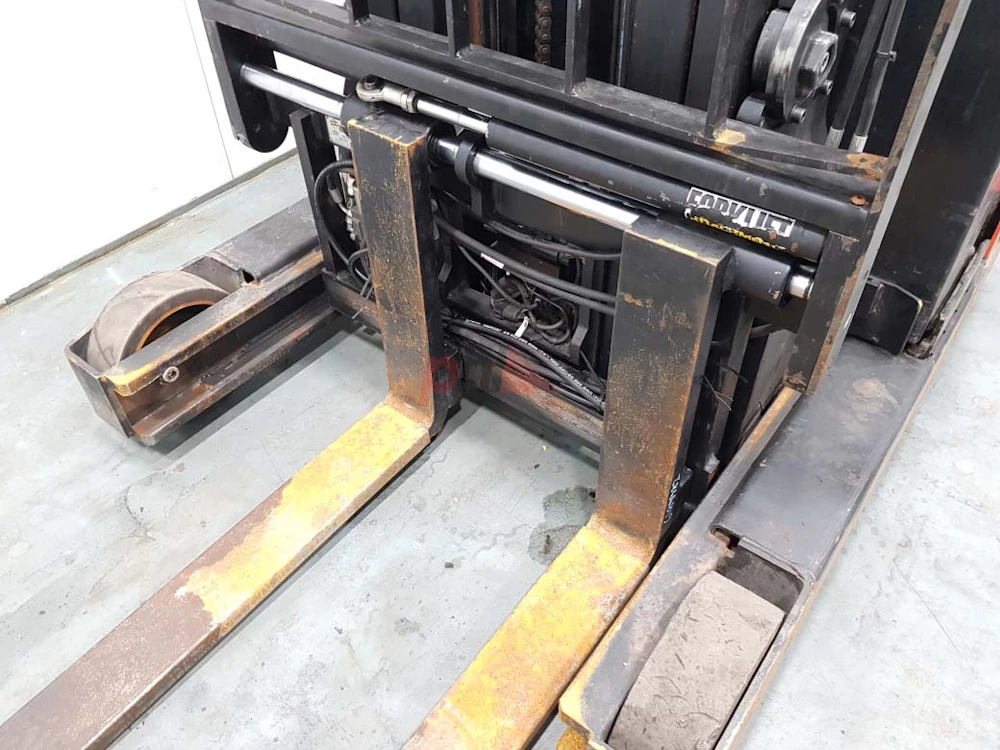

Attachments (Has attachment) Fork Positioners, Sideshift and Forks.
Attachment type (Attachment type) Fork positioners, shaft guided
Engine
Engine type (Engine type) electric
Extras
Extras SS, Fork Positioners, 6th Hydraulic, Hydraulic Extending Forks..
Extras Hyds 3rd, 4th & 5th
Battery
Battery Year (Battery Year of Manufacture) 2012
