Stock No: 385050

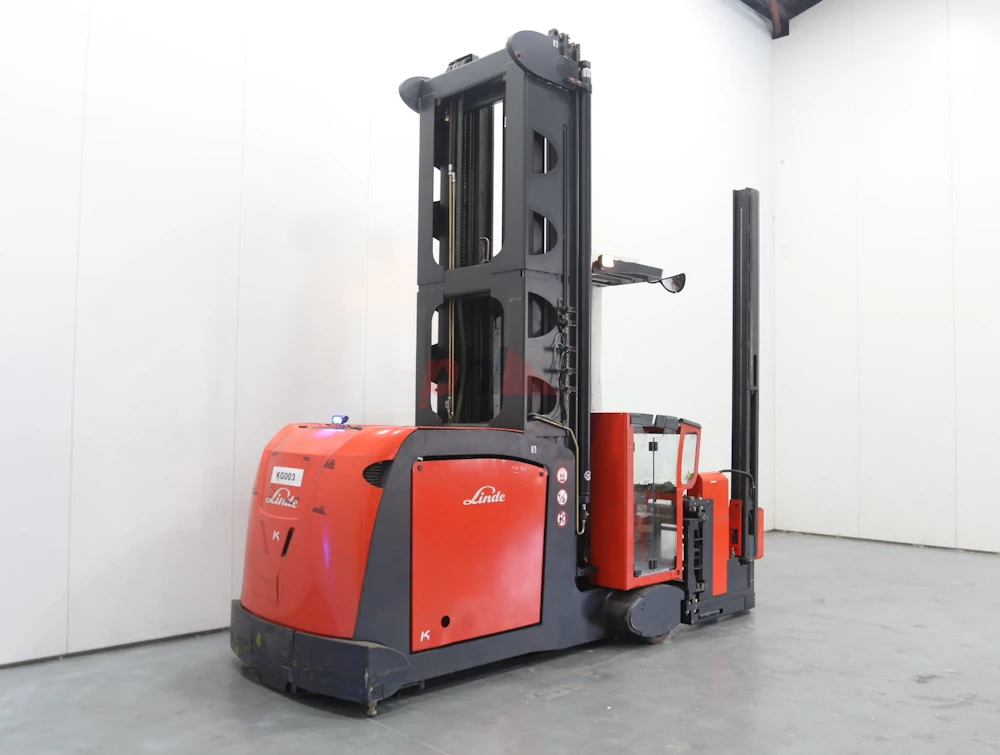

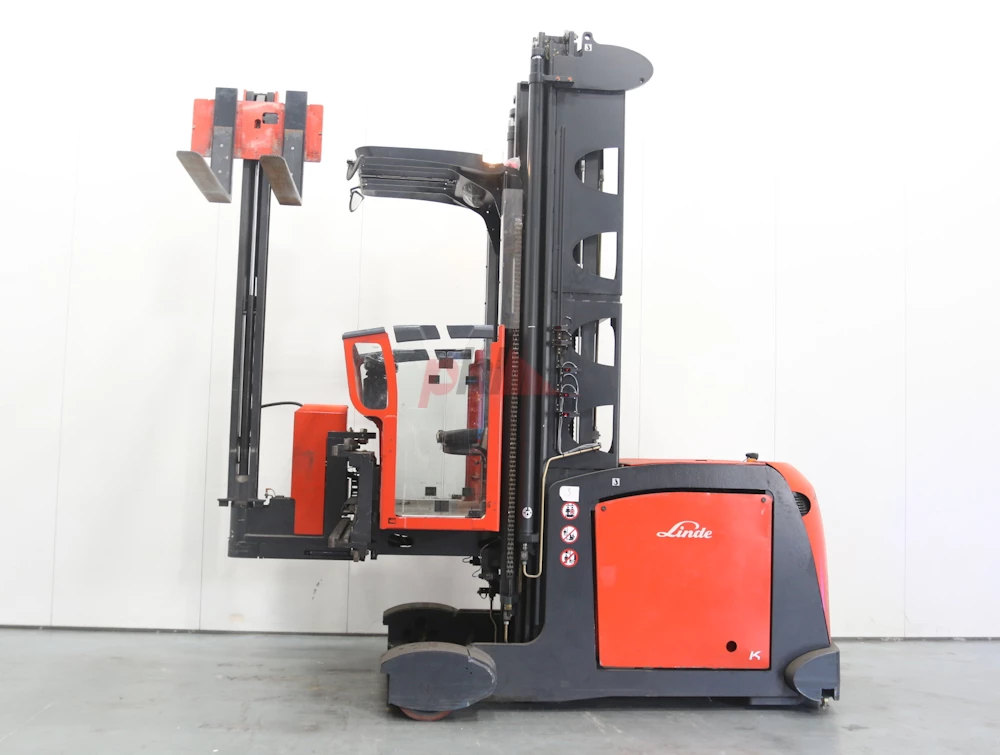

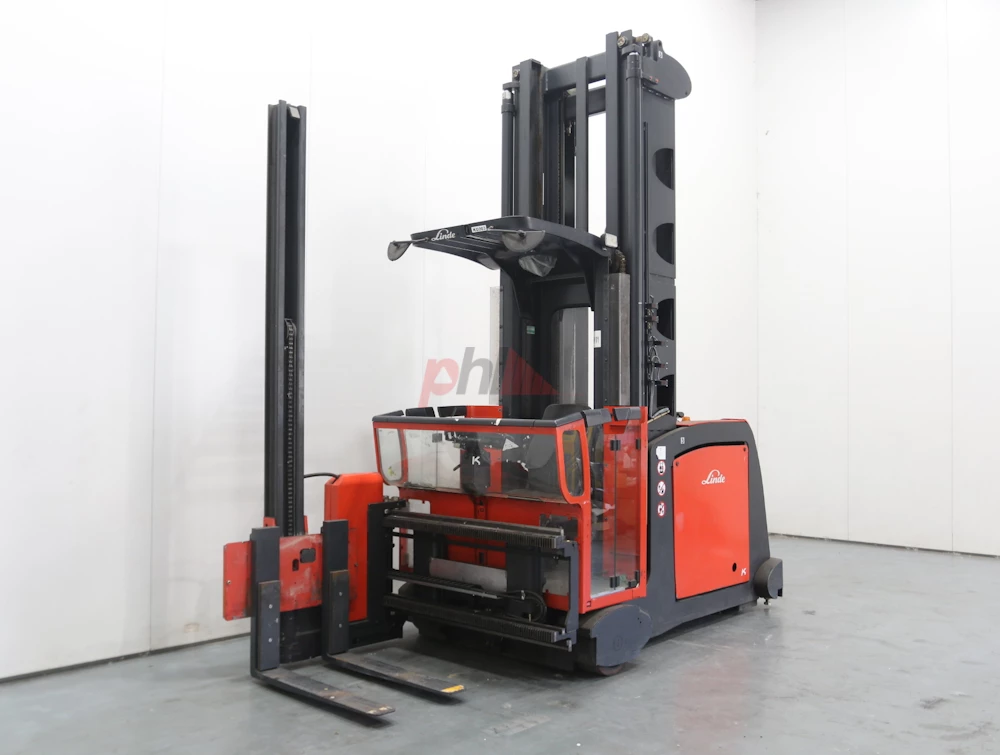

LINDE TURRET MAN UP

£££ Register for a trade account
Model K
Year 2008
Euromast 3F912
Hours 19709
Capacity 1250 kg
Lift height 9125
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type TURRET MAN UP
Make LINDE
Valves

Character.

Load Centre (c) 500/600/700 mm
Operating mode (Characteristic) Seated

Weights

Service weight (Total weight ) 9532 kg

Wheels

Tyres type Polyurethane
Tyre size front GOOD mm
Tyre size rear GOOD mm

Dimensions

Lift height (h3) 9125 mm
Extended height (h4) 12055 mm
Height of overhead guard (cabin) (h6) 2560 mm
Overall length (l1) 4120 mm
Overall width (b1/b2) 1550 mm
Forks length (l) 995 mm
Fork carriage width (b3) 900 mm
Fork spread (min/max) (b5) 190 / 525 mm
Length of chasis (l7) 3000 mm
Collapsed height (h1) 3900 mm
Seat/stand height (h7) 2000 mm
Forks height (s) 35 mm
Forks width (e) 150 mm
Fork height, lowered (h13) 70 mm
Initial width 1550 mm
Pick height 11775 mm
Rotator length 1040 mm
Pick height (h28) 11775 mm
Platform height, raised (h12) 7974 mm
Auxiliary lift (h9) 2440 mm
Fork pivot point (l8) 875 mm
Rotator width (F) 160 mm
Traverse stroke (b7) 1230 mm
Traverse frame width (B) 1495 mm
Rotator length (A) 1040 mm
Overall width of chassis (b1) 1140 mm
Total lift (h25) 11495 mm
Overall width of track wheel axle (b2) 1530 mm

Performance

Service brake electromagnetic

Drive

Battery weight 2219 kg
Drive motor (60 min rating) 7 kW
Battery voltage/capacity 80V/930Ah V/Ah
Battery (Acc. to DIN) Hawker

Attachment

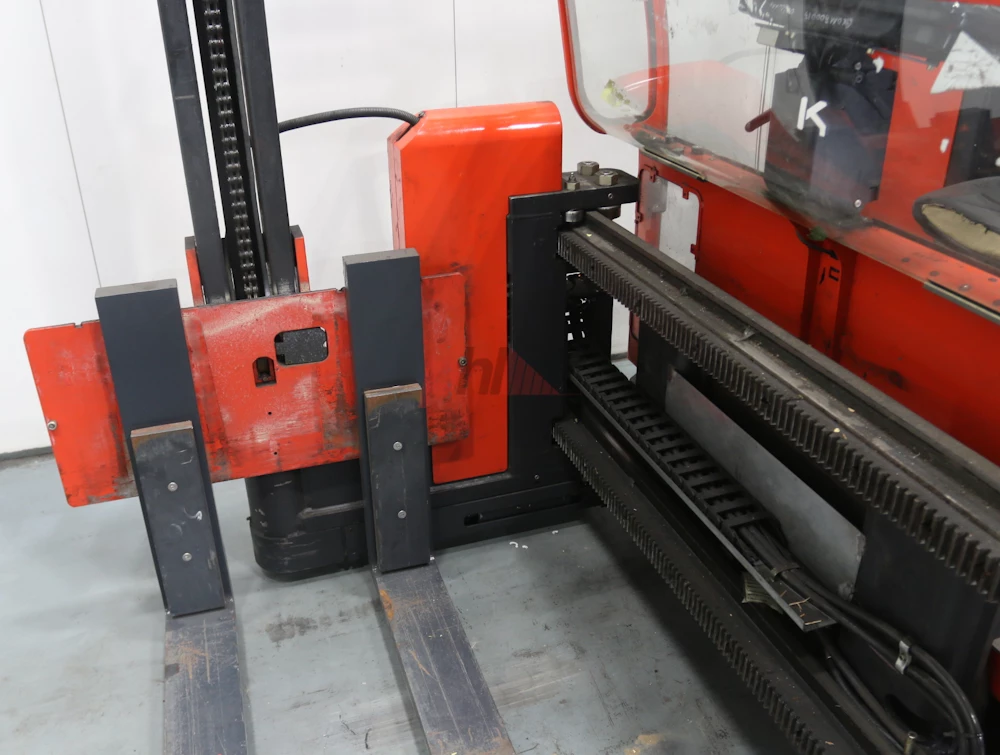

Attachments (Has attachment) Traverse Frame, 180 Degree Rotator and Forks.
Attachment type (Attachment type) Forks

Engine

Engine type (Engine type) electric

Extras

Extras Blue Spot, External Lights, Cabin Lights, Mirrors.

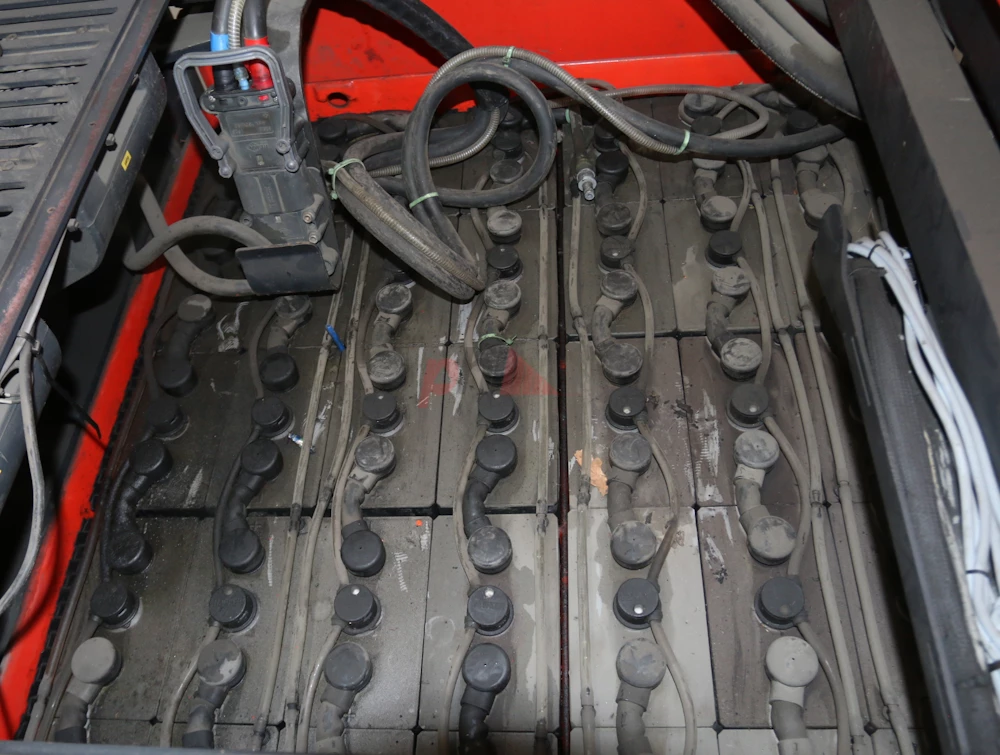

Battery

Battery Serial No 5811694001
Battery Condition (Battery Condition) 80 %
Battery Year (Battery Year of Manufacture) 2013
