Stock No: 351662

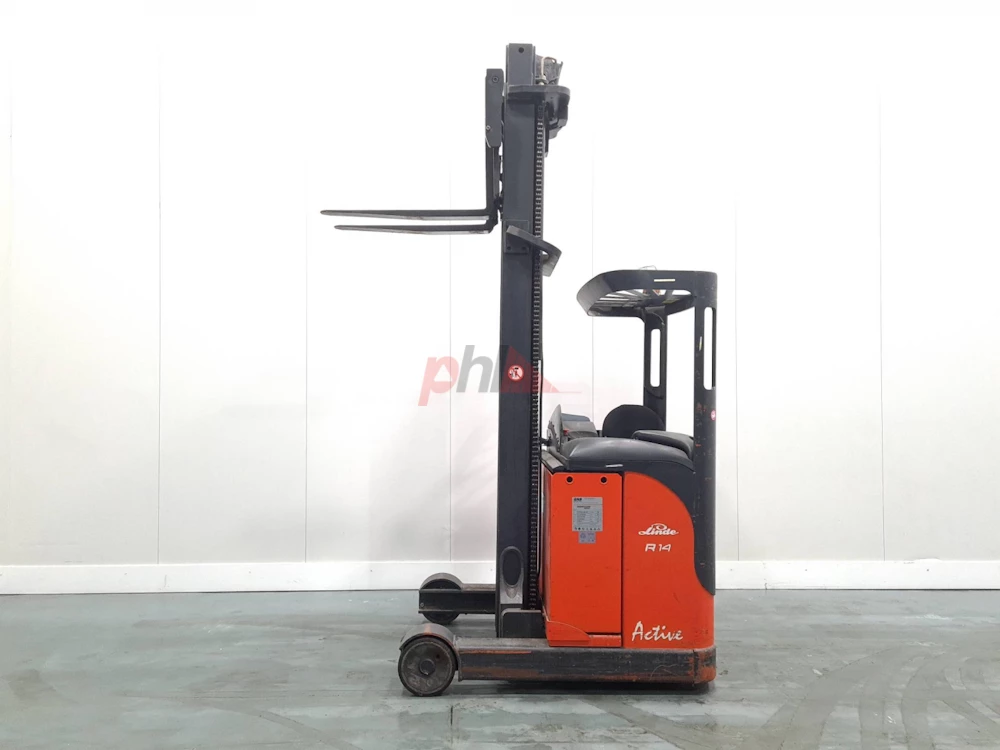

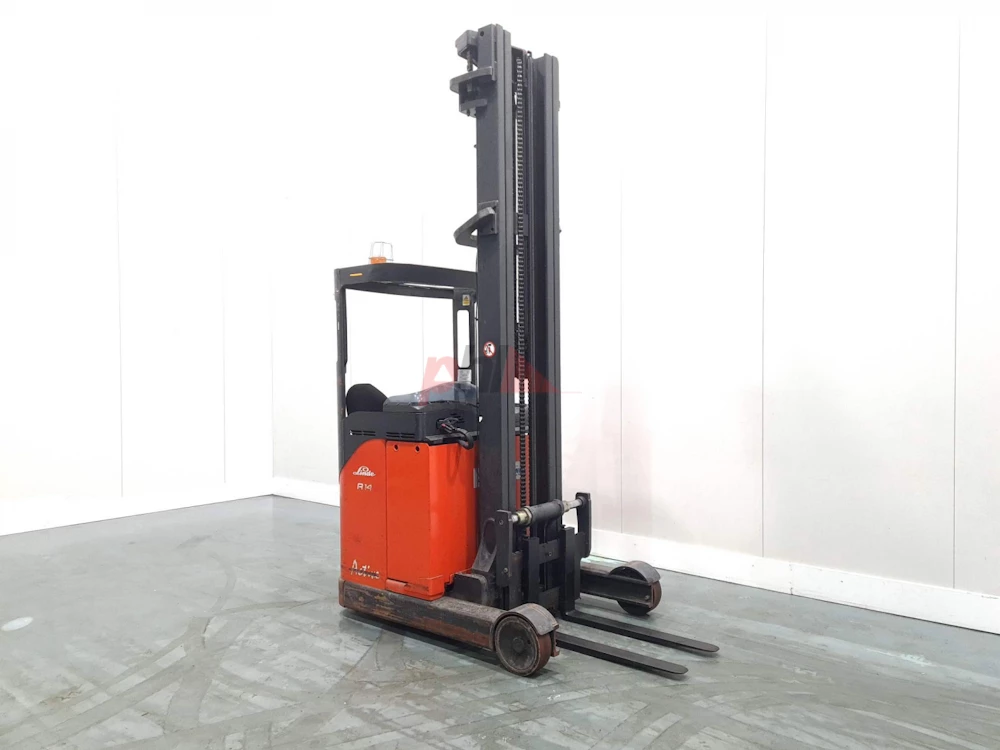

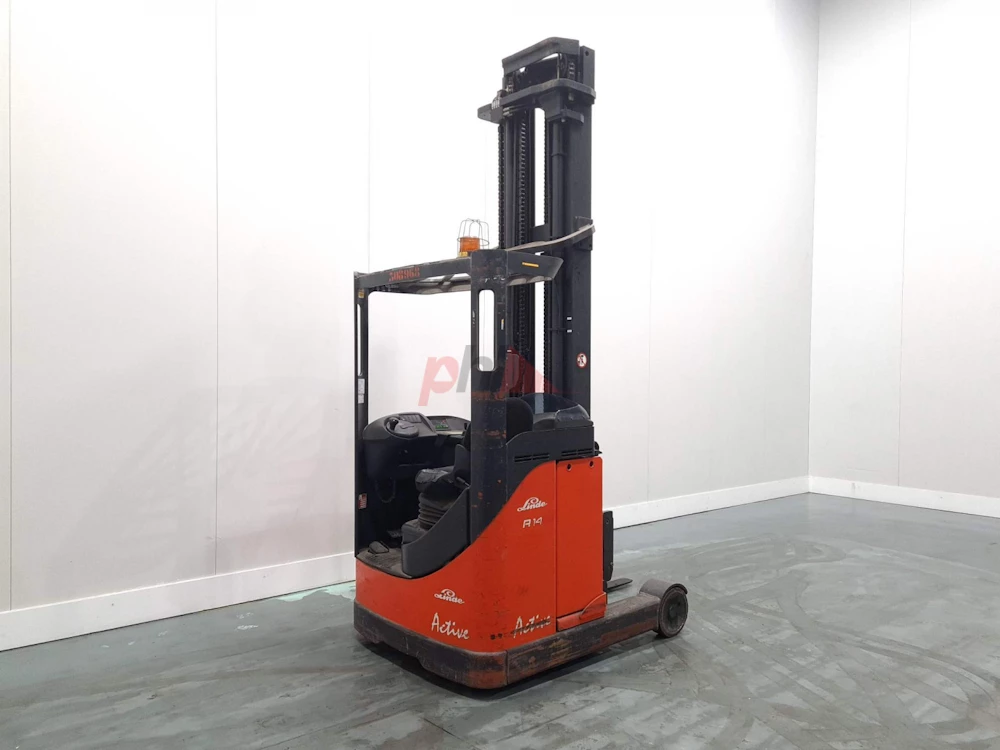

LINDE REACH

£ Register for a trade account
Model R14 115
Year 2003
Euromast 3F726
Hours 3652
Capacity 1400 kg
Lift height 7260
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type REACH
Make LINDE
Valves

Character.

Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Wheelbase (y) 1275 mm
Load distance (x) 311 mm

Weights

Service weight (Total weight ) 3299 kg
Axle load with load (front/rear) 1800/1090 kg

Wheels

Tyres type Polyurethane
Tyre size front 285 x 100 mm
Tyre size rear 343 x135 mm
Track width rear (b11) 1150 mm
Wheels (front/rear (x=driven)) 1x/2

Dimensions

Mast or fork carrage tilt (alpha,beta) 2/4 grad
Free lift (h2) 2550 mm
Lift height (h3) 7260 mm
Extended height (h4) 7940 mm
Height of overhead guard (cabin) (h6) 2110 mm
Height of reach legs (h8) 310 mm
Overall length (l1) 2384 mm
Length to fork face (l2) 1184 mm
Overall width (b1/b2) 1234/1250 mm
Forks length (l) 1000 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 830 mm
Fork spread (min/max) (b5) 296/690 mm
Width between legs (b4) 922 mm
Reach travel (l4) 496 mm
Ground clearance, mast (m1) 75 mm
Ground clearance, centre of wheelbase (m2) 75 mm
Turning radius (Wa) 1540 mm
Length of chasis (l7) 1638 mm
Ast across 1000x1200 (Ast) 2655 mm
Ast along 800x1200 (Ast) 2715 mm
Collapsed height (h1) 2976 mm
Seat/stand height (h7) 940/1030 mm
Forks height (s) 40 mm
Forks width (e) 80 mm

Performance

Travel speed (With, w/o load) 13.5/13.5 km/h
Lifting speed (With, w/o load) 0.34/0.6 m/s
Lowering speed (With, w/o load) 0.55/0.45 m/s
Climbing ability (30 min rating - with, w/o load) 4.5/8.2 %
Maximum climbing (With, w/o load) 10/10 %
Acceleration time (With, w/o load) 5.5/4.8 sec
Service brake electromagnetic

Drive

Battery weight 986 kg
Drive motor (60 min rating) 6.5 kW
Lift motor (15% rating) 12 kW
Battery class British Standard
Battery voltage/capacity 48V / 560Ah V/Ah
Battery (Acc. to DIN) GNB MARATHON CLASSIC

Other

Noise level 63 dB
Working pressure 200 bar
Oil flow (For attachments) 6.5 l/min

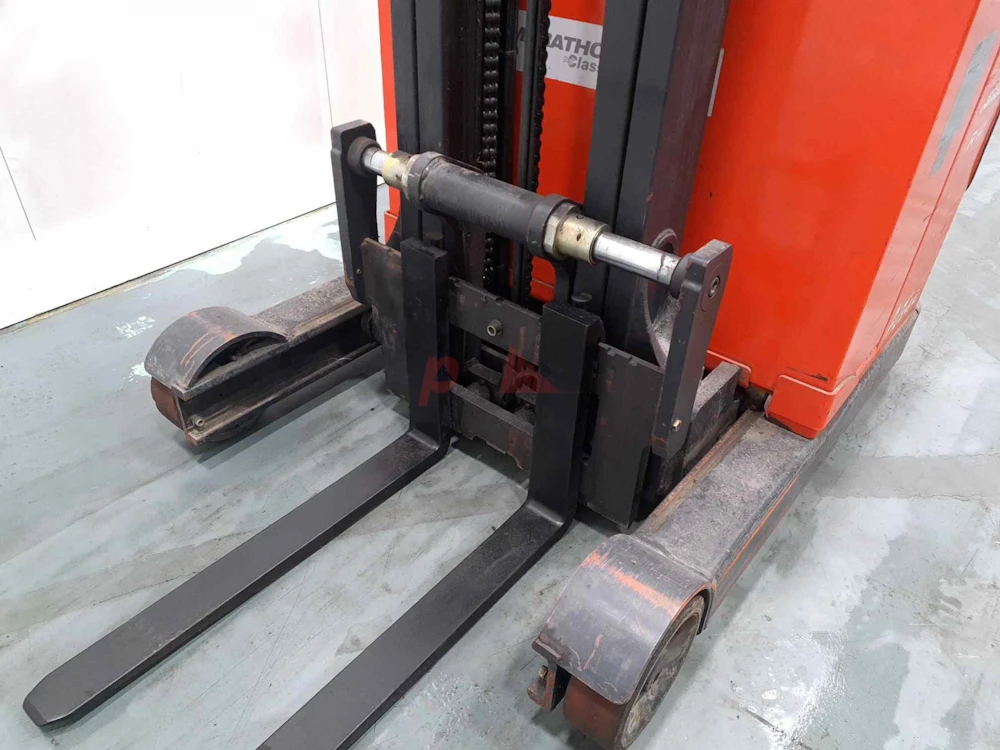

Attachment

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

Engine

Engine type (Engine type) electric

Extras

Extras SS.
Extras Hyds 3rd & 4th

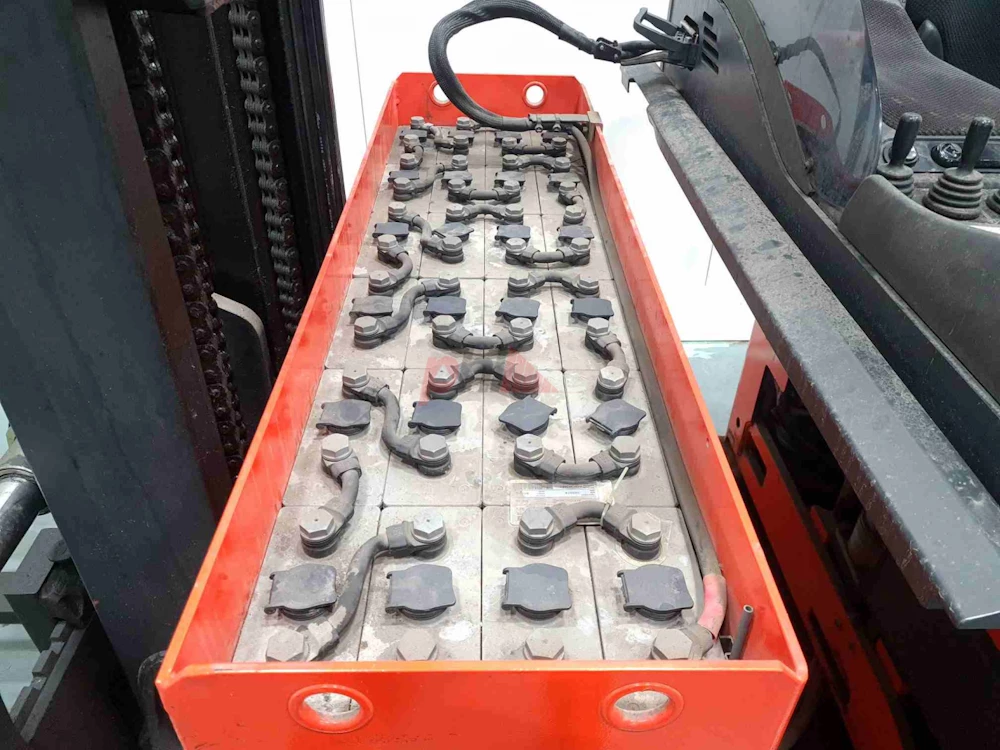

Battery

Battery Serial No 1101383662
Battery Year (Battery Year of Manufacture) 2014
