LINDE DIESEL
DIESEL • Stock No: 321522 £££
Login to see price Model H40D-02
Year 2015
Euromast 2F313
Hours 1585
Capacity 4000 kg
Lift height 3130
Back to search results
![LINDE DIESEL]()
![LINDE DIESEL]()
![LINDE DIESEL]()
![LINDE DIESEL]()
![LINDE DIESEL]()
Stock No: 329312 Enquire about this vehicle Enquire via
LINDE DIESEL
£££ Login to see price Register for a trade account Model H40D-02
Year 2013
Euromast 3F586
Hours 14409
Capacity 4000 kg
Lift height 5860
Download
Share
Further Vehicle Details
Specification:
Type DIESEL
Make LINDE
Valves 3
Character.
Load Centre (c) 500/600 mm
Operating mode (Characteristic) Seated
Wheelbase (y) 1998 mm
Weights
Service weight (Total weight ) 6280 kg
Axle load with load (front/rear) 8610/1180 kg
Wheels
Tyres type Superelastic
Tyres front condition 95%
Tyres rear condition 20%
Tyre size front 250-15-SC15 mm
Tyre size rear 250-15-SC15 mm
Track width front (b10) 1221 mm
Track width rear (b11) 1122 mm
Dimensions
Lift height (h3) 5860 mm
Extended height (h4) 7045 mm
Height of overhead guard (cabin) (h6) 2400 mm
Overall length (l1) 4200 mm
Length to fork face (l2) 3000 mm
Overall width (b1/b2) 1446 mm
Forks length (l) 1200 mm
Fork carriage (class) DIN 15173 / 3A
Fork carriage width (b3) 1350 mm
Ground clearance, mast (m1) 158 mm
Ground clearance, centre of wheelbase (m2) 201 mm
Turning radius (Wa) 2672 mm
Ast across 1000x1200 (Ast) 4355 mm
Ast along 800x1200 (Ast) 4555 mm
Towing coupling height (h10) 703 mm
Collapsed height (h1) 2760 mm
Seat/stand height (h7) 1226 mm
Forks height (s) 50 mm
Forks width (e) 120 mm
Auxiliary lift (h9) 2050 mm
Performance
Travel speed (With, w/o load) 21 km/h
Lifting speed (With, w/o load) 0.53/0.56 m/s
Lowering speed (With, w/o load) 0.52/0.57 m/s
Climbing ability (30 min rating - with, w/o load) 29/34 %
Acceleration time (With, w/o load) 5.5/4.8 sec
Service brake hydrostatic
Drive
Drive motor (60 min rating) 55 kW
Battery voltage/capacity 12V V/Ah
Other
Noise level 79 dB
Working pressure 170 bar
Oil flow (For attachments) 48 l/min
Traction control HYDROSTATIC TRANSMISSION

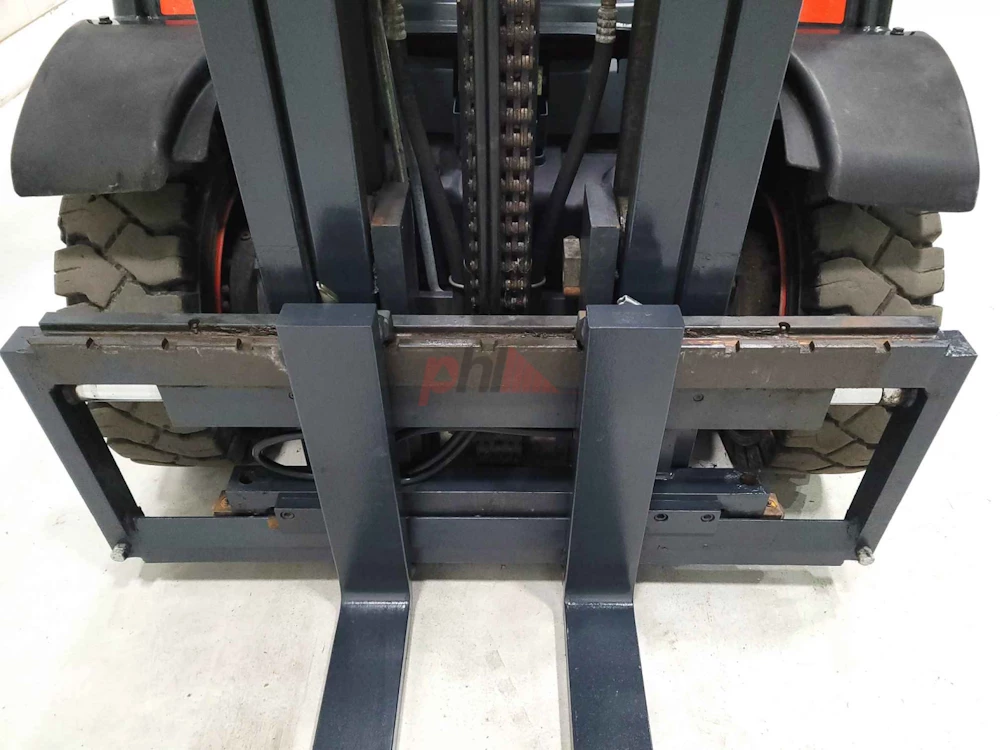

Attachment
Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

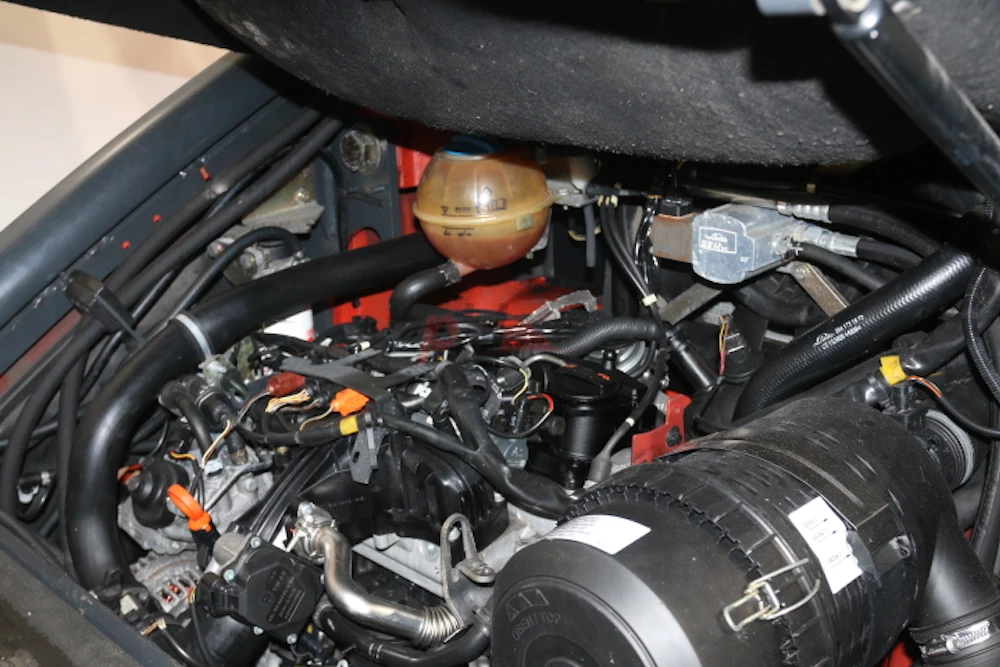

Engine
Manufacturer of engine/type VW / AUDI
Engine rated power (ISO 1585) 53 kW
Rated rpm 2800 rpm
Cylinders/Displac. ccm 4/1896
Fuel consumption (VDI) 4.6 l/h
Engine type (Engine type) diesel
Extras
Extras SS, Lights, Blue Spots.
Extras Hyds 3rd
